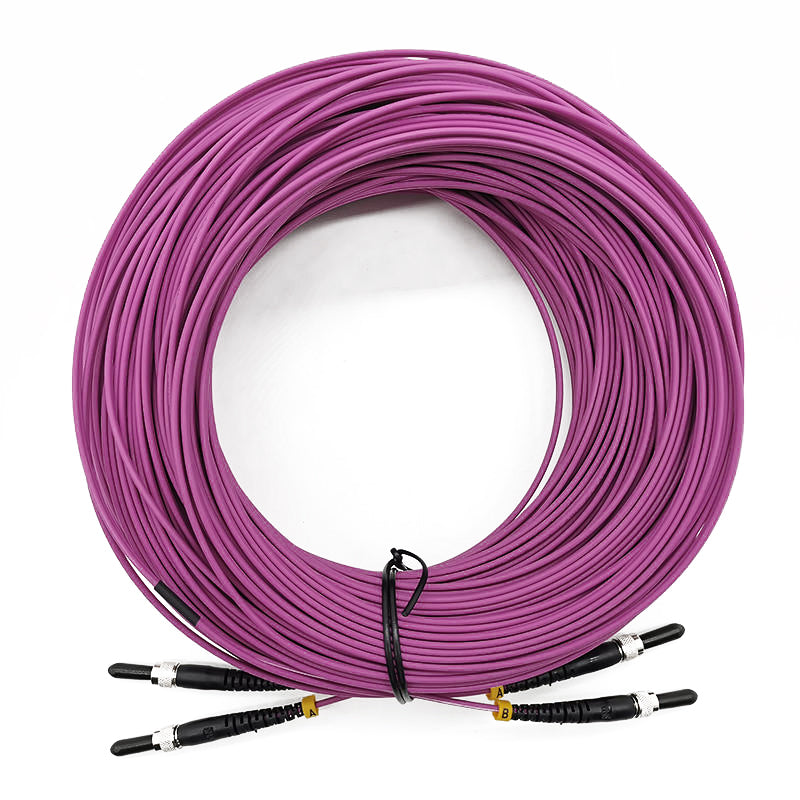

SMA905 to SMA905 Duplex OM4 Fiber Patch Cable 50/125um Megenta
Item Product Descriptions: SMA905-SMA905 Multimode OM4 (50/125um) Fiber Patch Cable, Duplex, Ceramic Ferrule, Megenta Color
What is SMA-905
The SMA905 Connector, also know as FSMA Connector, was one of the first fiber optic interconnect system that gained industry wide acceptance. Today the connector is still widely used for military, industrial, and medical applications.
Our SMA-905 Connectors have a threaded coupling nut and feature a stainless steel or a high quality zirconia ferrule with ID sizes up to 1500 microns to accomodate a wide range of optical fibers.
Specification
| Specification | Single Mode | Multi Mode | ||
| Parameter | PC | UPC | APC | UPC |
| Operating Wavelength | 1310nm, 1550nm | 850nm, 1300nm | ||
| Insertion Loss | ≤0.3dB | ≤0.2dB | ≤0.3dB | ≤0.2dB |
| Return Loss | ≥40dB | ≥50dB | ≥60dB | ≥30dB |
| Fiber Type | G652D (standard) and G655, G657A1, G657A2, G657B3 on request | OM1/OM2/OM3/OM4/OM5 | ||
| Exchange | ≤0.2dB | |||
| Repeartability | ≤0.2dB | |||
| Durability | > 1000 times | |||
| Connectors Type | SMA905 to SMA905 | |||
| Cable Type | Simplex | |||
| Sheath Material | PVC(OFNR) | |||
| Cable Diameter | φ3.0mm | |||
| Length (M) | Customized | |||
| Operating Temperature | -40℃~+60℃ | |||
| Storage Temperature | -45℃~+85℃ | |||
| Compliant Standards | CE,RoHS, REACH and IEC | |||
