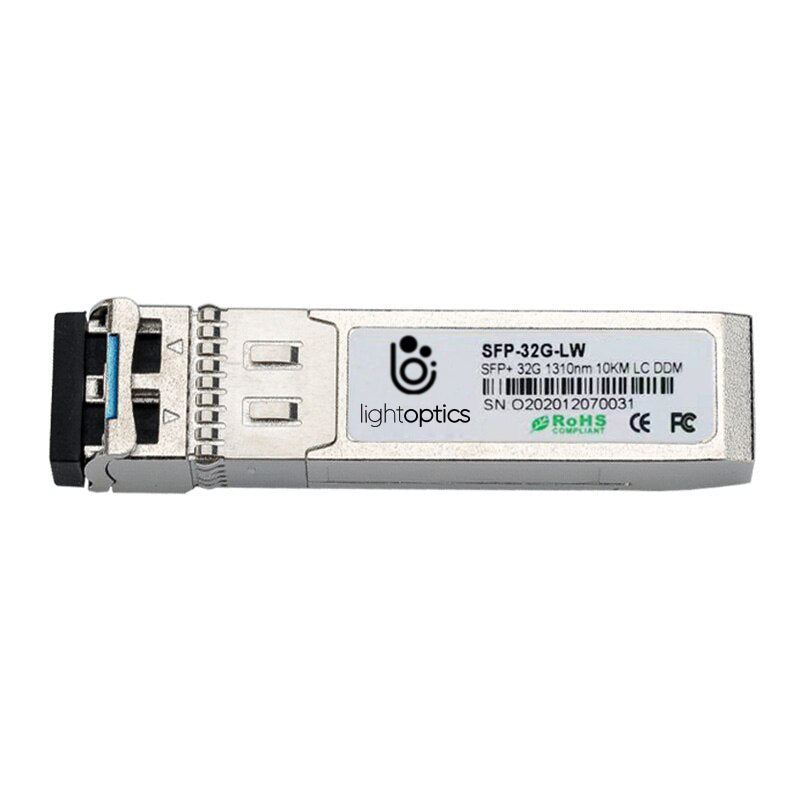

SFP-32G-LW IBM Compatible SFP28 Transceiver 32GBASE-LW 1310nm 10KM DDM
IBM Compatible 32GBase-LW Fiber Channel SFP28 LR Transceiver (SMF, 1310nm, 10km, LC, DOM)
LightOptics's SFP-32G-LW is an equivalent solution for overpriced original SFP28-32G-LW from IBM for 16G/32G Fibre Channel (16G/32G FC) applications, which primarily serve as a margin product for the manufacturer, filling the pockets of the company at your expense.
It supports links up to 10km over single-mode fiber. This 32GBASE-LW SFP28 module features a highly reliable 1310nm DFB transmitter and PIN photo-detector into a duplex LC optical connector. And it is a multi-rated 1310nm optical transceiver that supports 14.025/28.05G Fibre Channel specifications. It’s suitable for use with 32G SAN switches, routers, network interface cards (NICs), and other storage networking equipment.
The IBM compatible SFP-32G-LW from the LightOptics use only high-quality brand lasers (such as Avago or Lumentum) and high-quality ICs (such as Maxim Integrated or Netlogic) and therefore have the same quality or even a better quality as the original SFP28-32G-LW from IBM. If you are not yet familiar with compatible IBM SFP28-32G-LW, please let us know. You can request a test sample to try out a compatible IBM SFP28-32G-LW product in your system.
Features
• Supports up to 28.05Gbpsbit rates
• Hot-pluggable SFP+ footprint
• 1310nm DFB laser and PIN photodiode
• Up to 10km for single-mode fiber transmission
• Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
• Real-Time Digital Diagnostic Monitoring
• Single +3.3V power supply
• RoHS compliant and Lead-free
Specification
| Product Series | Fiber Optical Transceiver | Part Number | SFP-32G-LR |
| Form Factor | SFP28 | Data Rate | 28.05 Gb/s |
| Wavelength | 1310nm | Fiber Type | SMF |
| Max Distance | 10 km | Optical Components | DFB/PIN |
| Transmitter Power | -7.0 ~ -2.0 dBm | Extinction ratio | > 4.0 dB |
| Receiver Sensitivity | < -11.6 dBm | Receiver Overload | > 2.0 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | High-speed storage area networks − Switches and hubs − Network interface cards − Mass storage systems − Host bus adapters Tri-Rate 16G/32G Fibre Channel |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
