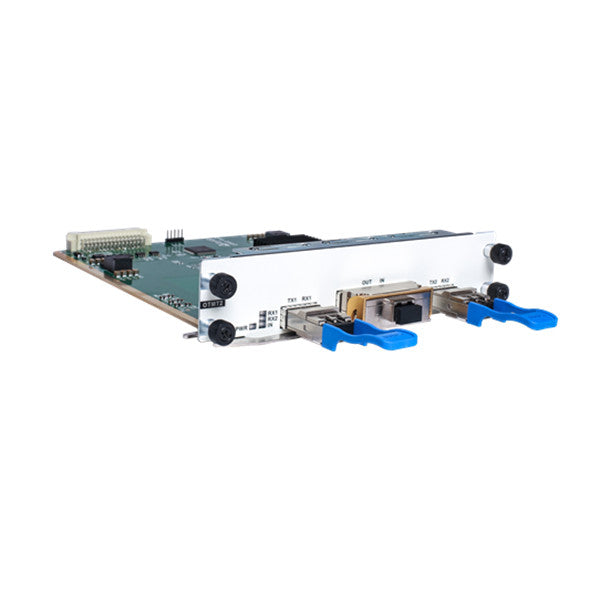

OTN6500 200G CFP2 Muxponders 2x 100G QSFP28 to 1x 200G CFP2 OTU4
The 200G CFP2 Muxponder board supports 2x100G QSFP28 to 200G CFP2 electrical layer multiplexing / demultiplexing and is converted into a 200G rate WDM standard wavelength optical signal so that the multiplexing unit can deal with different wavelengths of light. The signal is wavelength-division multiplexed, and at the same time, the reverse of the above process is realized.
The CFP2 line side adopts advanced technologies such as DP-8QAM or DP-16QAM modulation and coherent reception, which overcomes the challenges of high-speed transmission systems for the physical effects of transmission such as OSNR requirements, CD tolerance, PMD tolerance, and non-linearity.
This CFP2 200G muxponder reach up to 800 kilometers without electric relay transmission, and supports C-band 96-wave (50GHz) tunable.s.
2x100G QSFP28 to 1x 200G CFP2 Muxponder Functional Structure
SPECIFICATIONS
| Parameter | 100GE/OTU4 |
| Interface | Client-side interface: 2 QSFP28 hot-pluggable |
| WDM-side interface: 1 CFP2 hot-pluggable, coherent DP-8QAM or DP-16QAM | |
| Line mode | Support two 100G service transmissions, transform two 100G service optical signals into one 200G DWDM standard wavelength optical signal |
| Relay mode | Support 200G wavelength electrical relay |
| Support service type | 100GE |
| OTU4 | |
| WDM technology | Support DWDM: C band 50GHz 96 wavelengths adjustable |
| FEC technology | Support SDFEC and G.709 FEC |
| Network management function | Support real-time monitoring of the port working state, including transmitting optical power and receiving optical power, temperature, etc. |
| Support port loopback and port shutdown | |
| Max power consumption | 30W (including transceiver) |
| MTBF | ＞100000 hours |
