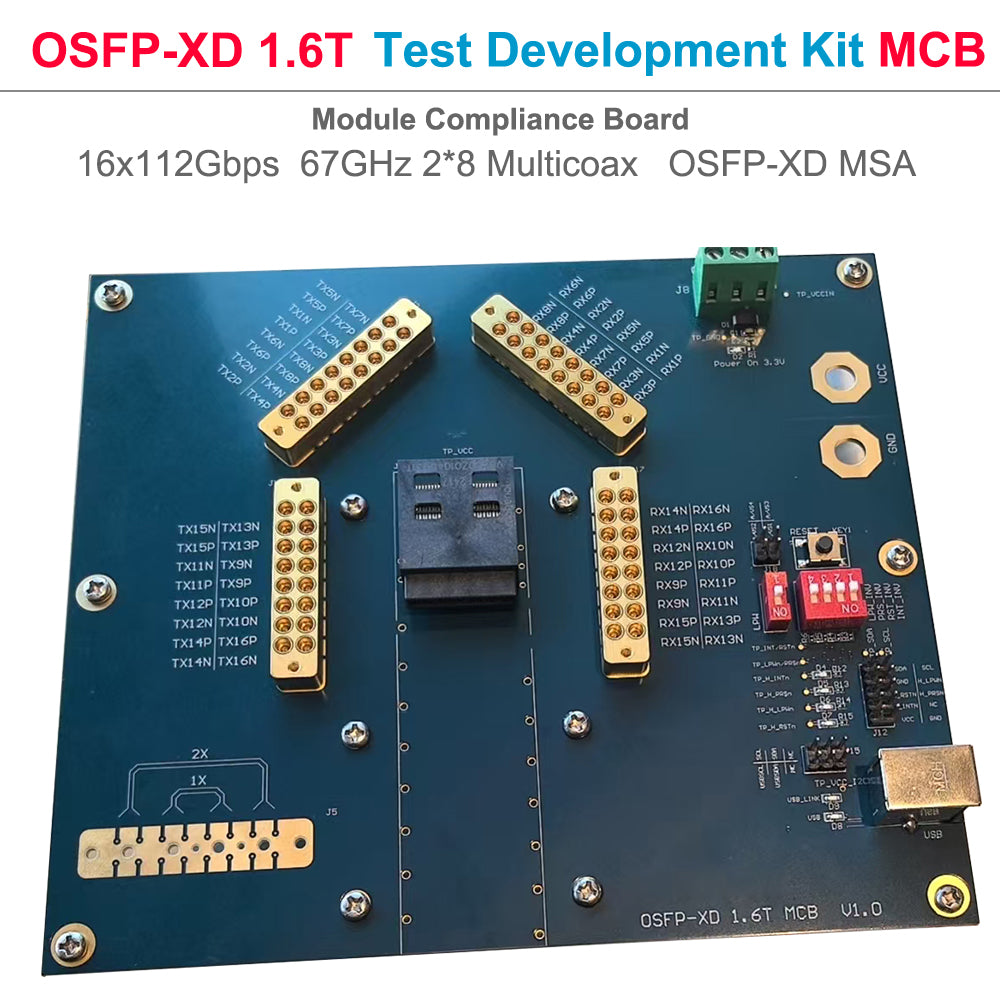

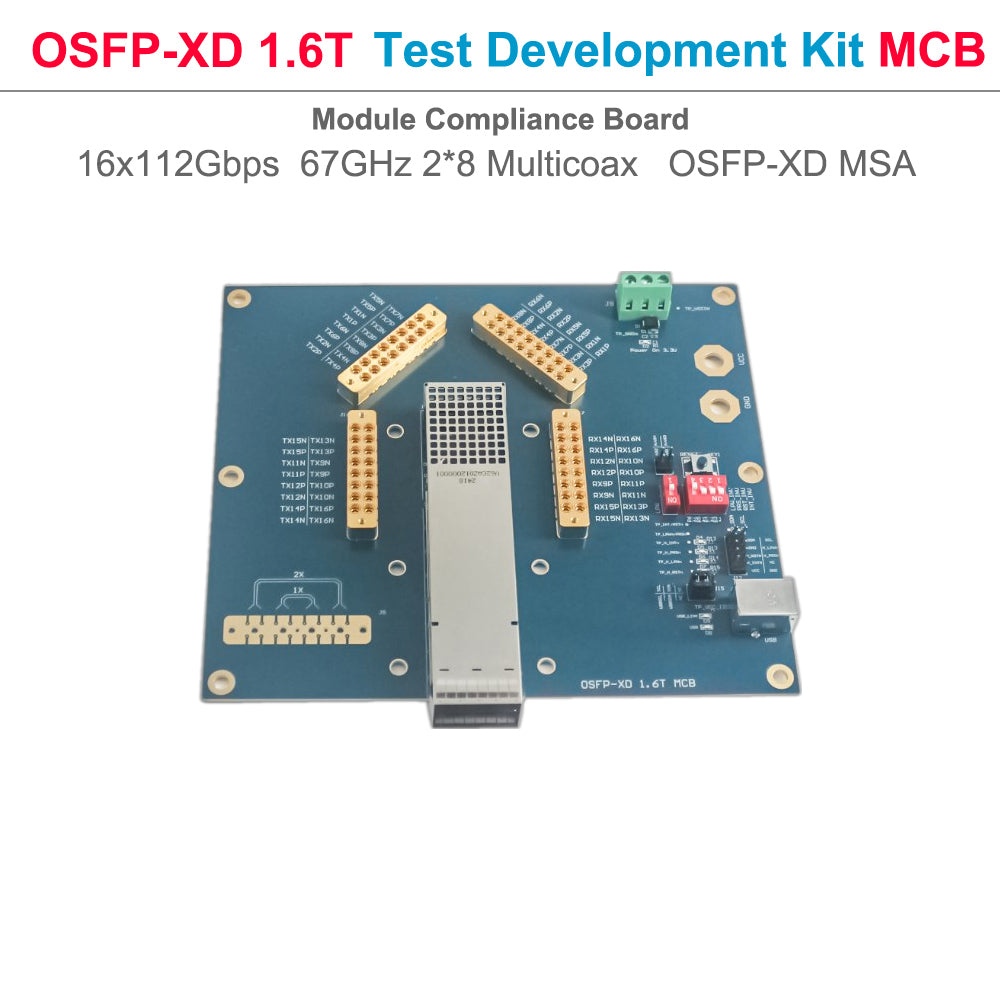

1.6Tbps Module Compliance Board MCB for OSFP-XD pluggables
16x 112Gbps/lane OSFP-XD 1.6T Module Compliance Board
1.6Tbps Module Compliance Board ( MCB ) for OSFP-XD pluggables features pin headers with access to power, low-speed signals, support for external I2C communication via pin headers or standalone packet analyzers, the ability to drive 3.3 V from external source for power supply margining, and multiple calibration test traces.
The 112Gbps/lane OSFP-XD 1.6T Module Compliance Board connects to instrumentation with high-performance SMPS connector assemblies certified to perform with frequencies north of 90Ghz, giving the MCB a total loss profile compliant with the IEEE 802.3ck specification. A USB interface grants access to a CMIS GUI, providing an all-inclusive approach to characterizing pluggable devices-under-test.
Product Features
- Supports 16x112Gbps electrical interface
- 67GHz 2*8 Multicoax Solderless Connectors
- Connector Durability:250cycles minimum
- Switch control (MODSElL,ResetL,LPMODE)
- DDMI Connection(I2C) and USB interface
- All 16 channels come with matching trace length
- OSFP-XD MSA
- Module power consumption Support Class 8
- Operation Temp: -40℃ ~ +85℃
