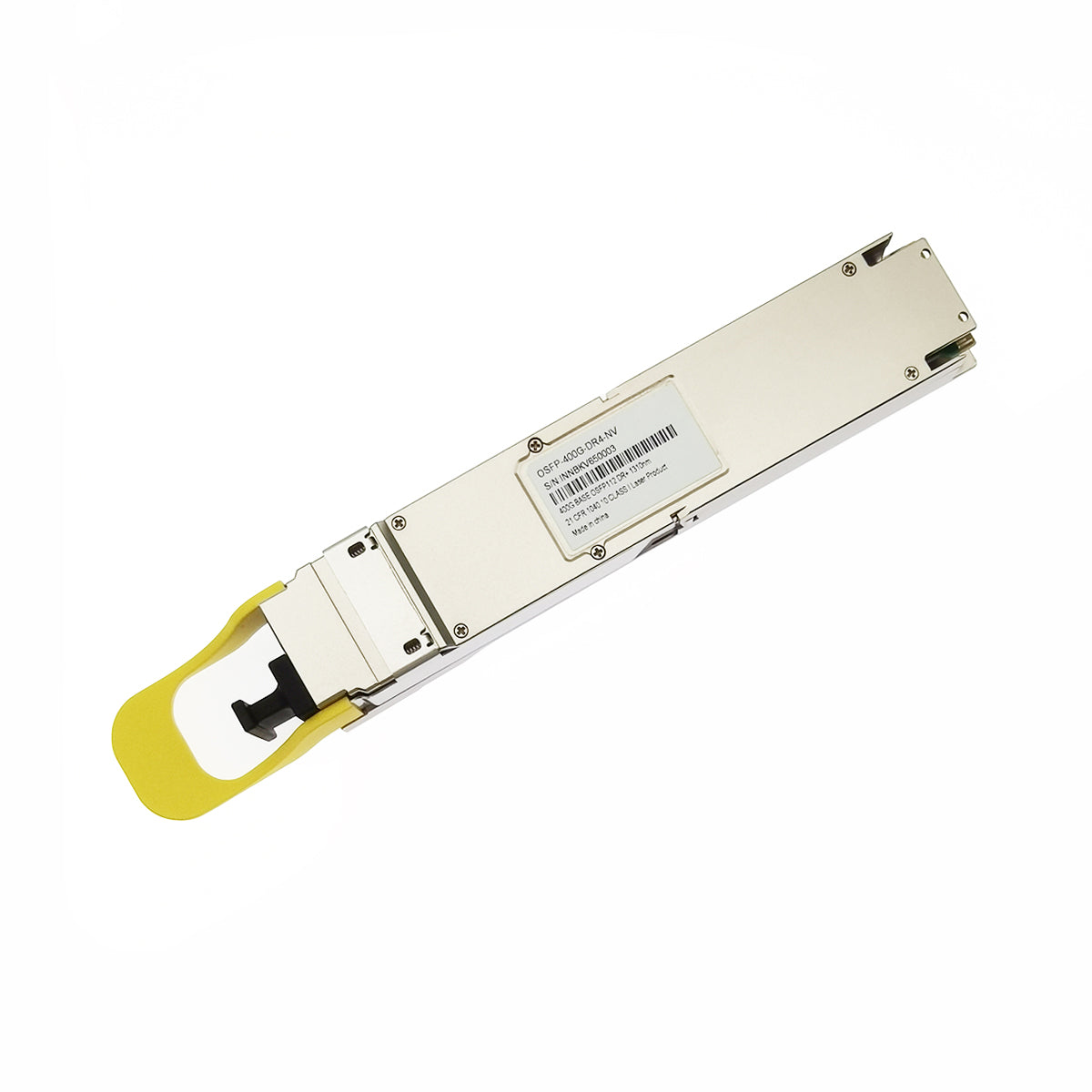

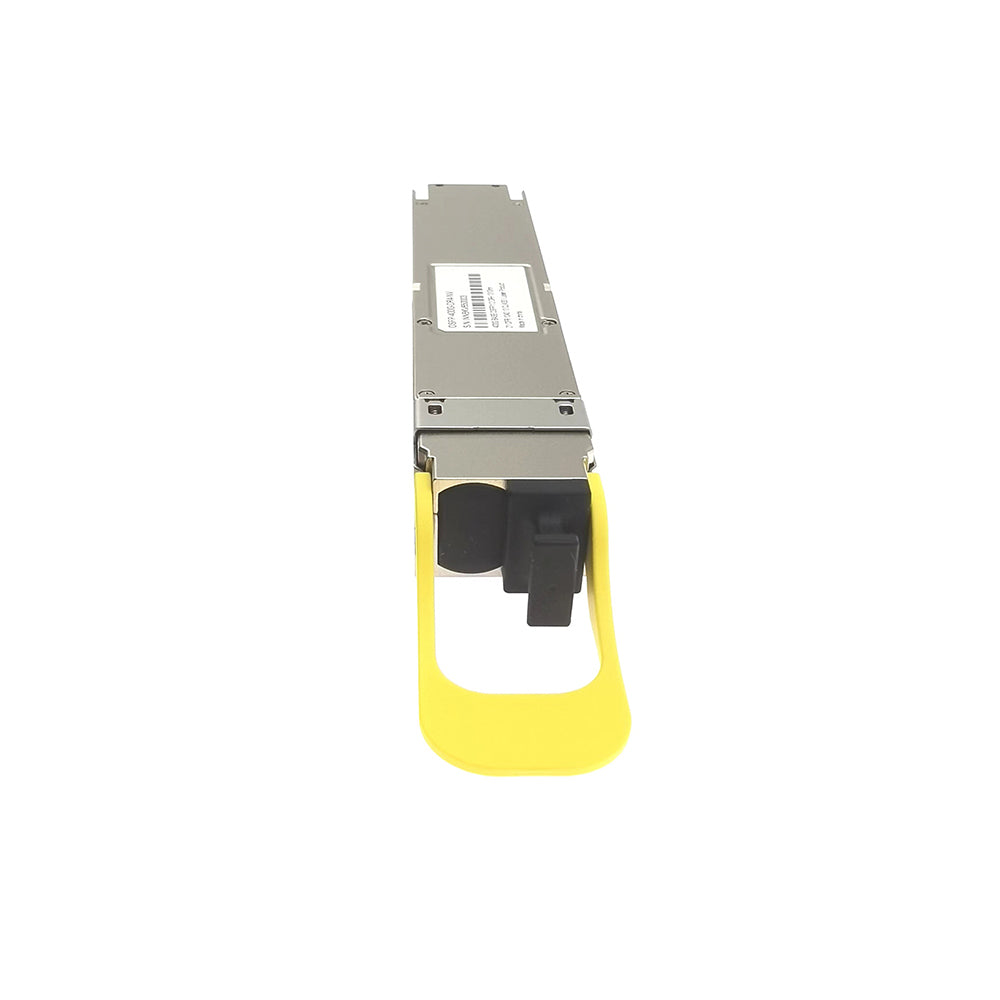

NVIDIA InfiniBand MMS4X00-NS400 OSFP 400G DR4 PAM4 1310nm 500m MPO-12/APC SMF NDR Flat Top Optical Transceiver Module for ConnectX-7 HCA
NVIDIA InfiniBand Compatible OSFP 400G DR4 PAM4 Optical Transceiver (SMF, 1310nm, 500m, MPO-12/APC, DOM, Flat Top)
The 400G DR4 OSFP Optical Transceiver is an InfiniBand 400Gb/s Single-port OSFP, DR4 single mode parallel transceiver using a single, 4-channel MPO-12/APC optical connector. The Reach 4-channel (DR4) design uses 100G-PAM4 modulation and has a maximum fiber reach of 500-meters using OS2 single mode fibers. It is qualified for use in InfiniBand NDR end-to-end systems.
It is the ideal solution for supercomputing, seamlessly integrating into computing and storage infrastructure to ensure efficient high-performance interconnectivity. Used in ConnectX-7/OSFP adapters linked to Twin-port transceivers in 2x400G IB switches.
Features
- Qualified for InfiniBand NDR End-to-End Systems
- Built-in Broadcom 7nm DSP Chip, Max. Power Consumption 10W
- Flat-top OSFP for ConnectX-7 Adapter

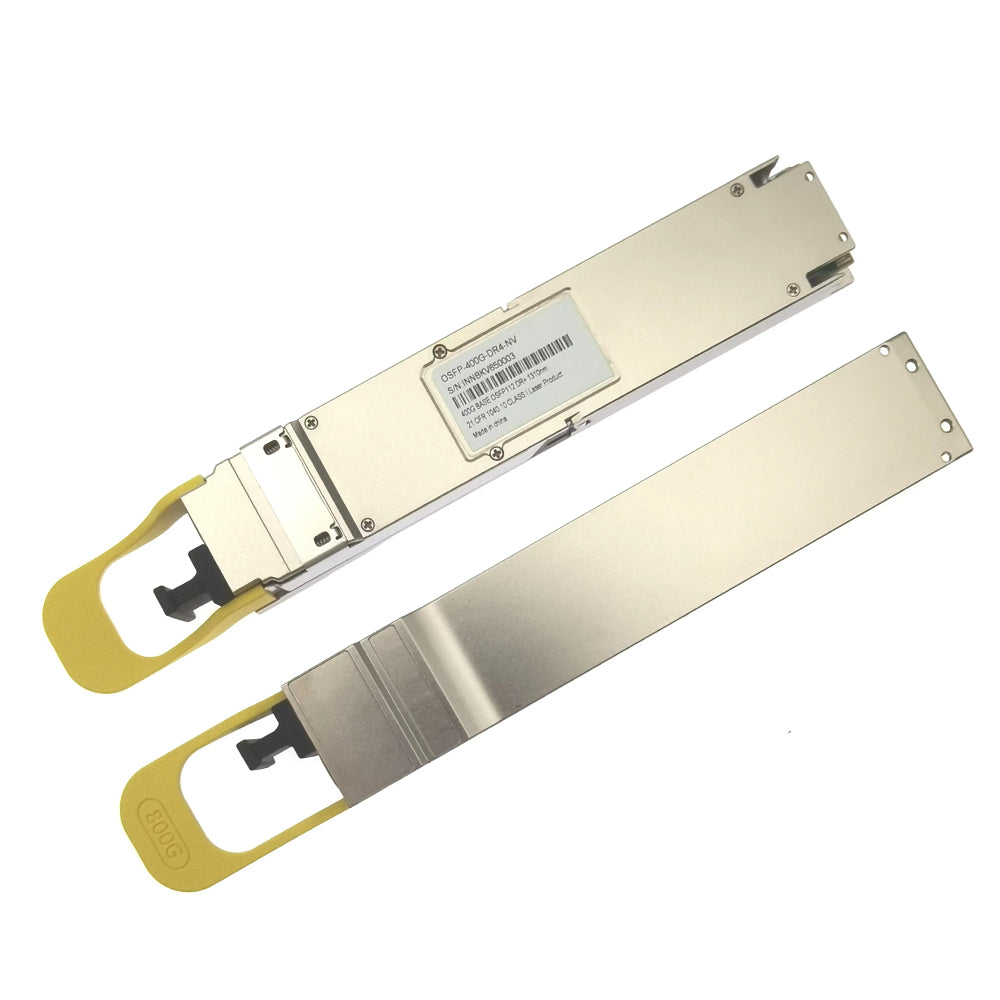

- Support 800G-to-Two 400G Links for Switch-to-Adapter
- 4x 100G-PAM4 electrical to 4x 100G-PAM4 optical Parallel
- 100% Verified by the Original, Perfectly Compatible with NVIDIA ConnectX-7 Adapters
- Compliant with OSFP MSA, IEEE 802.3ck and Class 1 Laser Safety, with DDM Support
NVIDIA InfiniBand MMS4X00-NS400 Compatible 400G OSFP DR4 Transceiver Connectivity Scenarios
Product Details
| NVIDIA Compatible | MMS4X00-NS400 | Vendor Name | LightOptics |
| Form Factor | OSFP | Max Data Rate | 425Gbps |
| Wavelength | 1310nm | Max Distance | 500m |
| Modulation Format | PAM4 | Host Required | FEC |
| Connector | MTP/MPO-12 APC | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | 1310nm EML | Receiver Type | PIN |
| TX Power | -2.9~+4.0dBm | Receiver Sensitivity | < -4.4dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 12.0W |
| Protocols | OSFP MSA, IEEE 802.3bs | Application | 400G Ethernet, Datacenter Enterprise Networking, Infiniband Interconnects |
