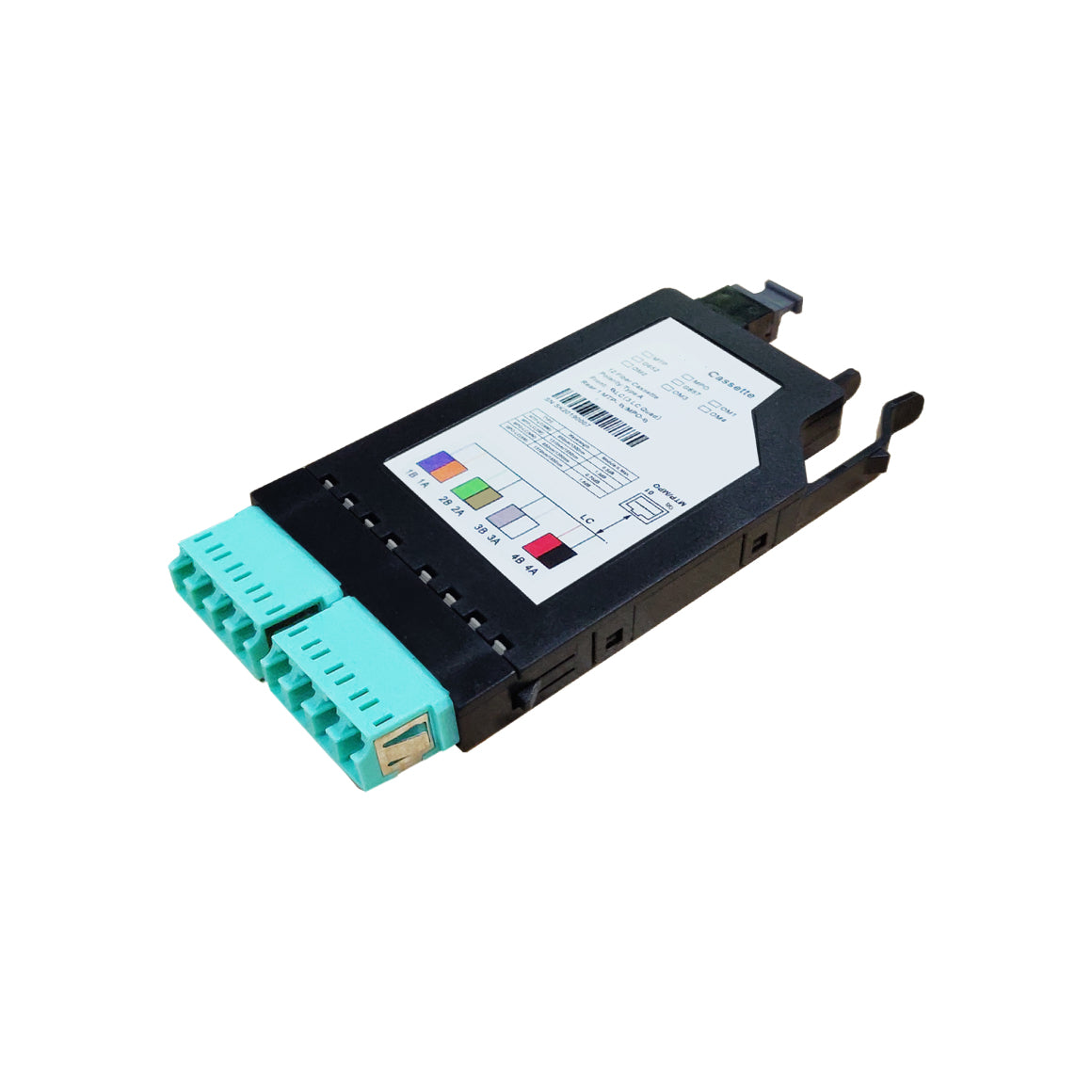

FHD18 Series MTP-8 Cassette, 8 Fibers OM3 Multimode, MTP to 2x LC Quad (Aqua), 0.35dB Max
Applications
- Data center
- Parallel optics
- Storage Area Networks (SAN)
- 40GBASE-SR4 to 4x10GBASE-SR links
High density easy-plug cassette modules
- Mounts up to 144-fiber per 1U (18 slots for base-8 cassette), 576-fiber per 4U rackmount patch panel
Plug-&-play MTP/MPO cabling solution
- Flexible for integration with 1U/2U/4U FHD18 series rack-mount patch panel
Ease of installation and good traceability
- Channel label and data label printed with insertion loss value for each port
Qualified performance beyond TIA/EIA and IEC standards
- Pre-installed with factory-terminated and factory tested MTP/ MPO to LC hydra assembly
Simple to use, convenient installation
- Pre-installed with fiber MTP/MPO adapters at the rear, and LC adapters in the front panel
Field terminations Elimination
- Reduces labour cost and improves cabling manageability
| Fiber Count | 8 Fibers | Fiber Mode | OM3 50/125um |
| Front Connector Type | 2 LC UPC Quad (Aqua) | Rear Connector Type | 1x MTP Base-8 Male (Pinned) |
| MTP® Adapter | Key up to Key down | Performance Level | Laser Optimized |
| Insertion Loss | MTP®≤0.35dB, LC≤0.2dB | Return Loss | MPO≥60dB, LC≥50dB |
| RoHS Compliancy Status | Compliant | Dimensions (HxWxD) | 60mm×96mm×11.7mm |
| Operating Temperature | -10°C to 60°C | Storage and Shipping Temperature | -10°C to 60°C |
