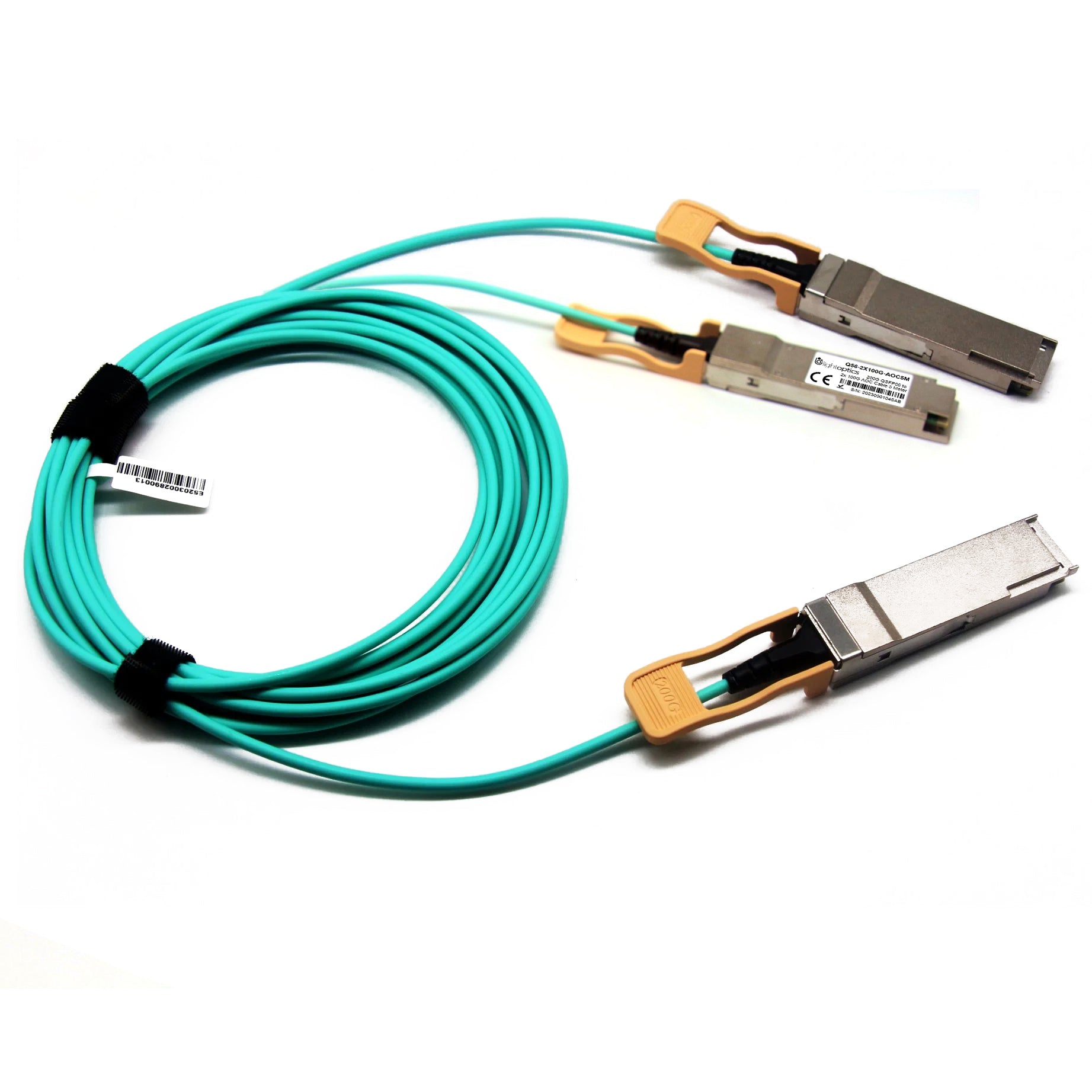

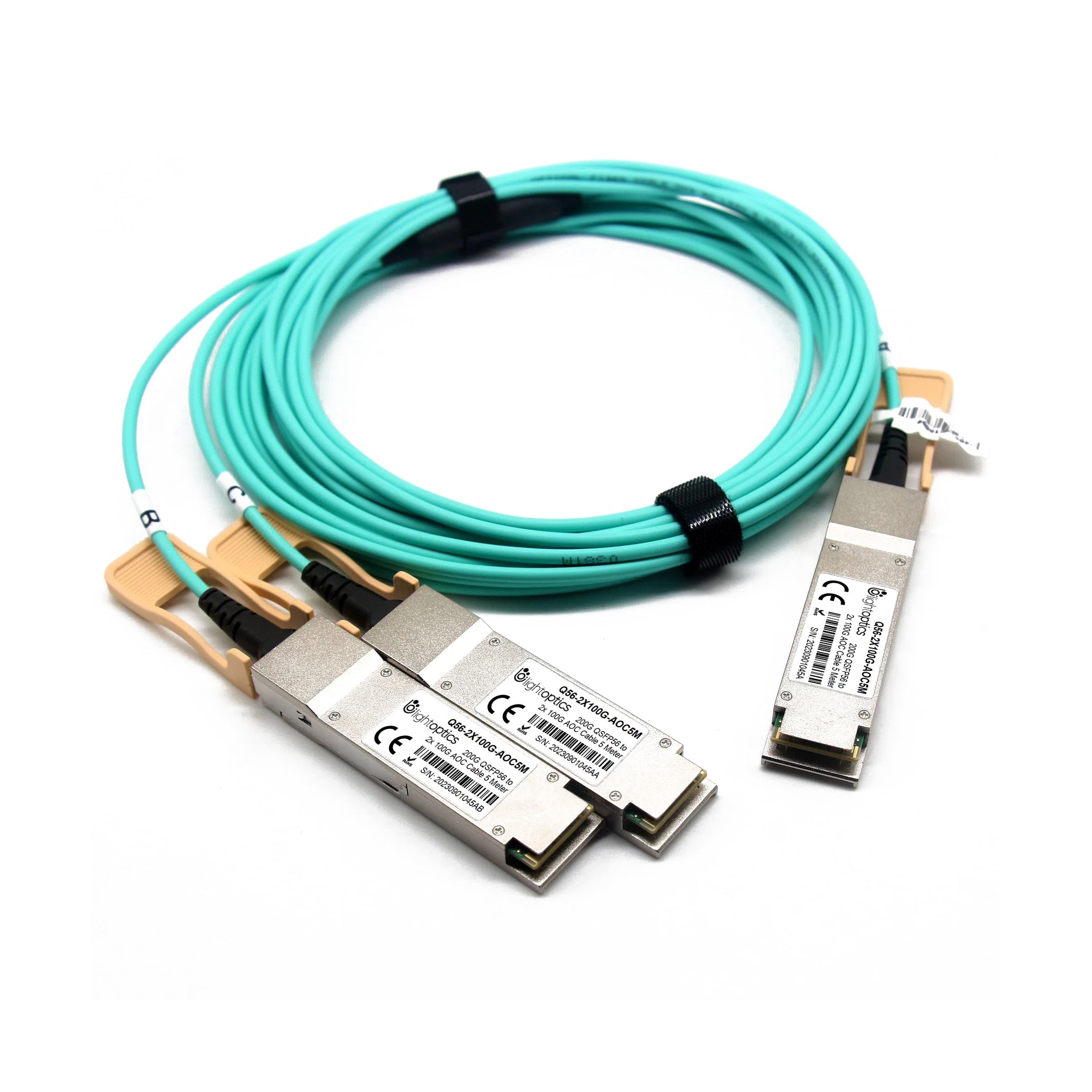

10m NVIDIA MFS1S50-H010E compatible 200Gbps to 2x100Gbps QSFP56 to 2x QSFP56 Active Optical Splitter Cable

$385.00
$385.00

NVIDIA/Mellanox MFS1S50-H010E/MFS1S50-H010V Compatible 200Gb/s HDR to 2x100Gb/s HDR100 (QSFP56 to 2xQSFP56) MMF Splitter AOC Cable

This 200G AOC cable is a QSFP56 VCSEL-based (Vertical Cavity Surface-Emitting Laser), costeffective 200Gb/s to 2 x 100Gb/s active optical splitter cable (AOC) designed for use in 200Gb/s InfiniBand HDR (High Data Rate) systems. It is compliant with SFF-8665 for the QSFP56 pluggable solution. It provides connectivity between system units with a 200Gb/s connector on one side and two separate 100Gb/s connectors on the other side, such as a switch and two servers. The cable connects data signals from each of the 4 MMF (Multi Mode Fiber) pairs on the single QSFP56 end to the dual pair of each of the QSFP56 multiport ends. Each QSFP56 end of the cable comprises an EEPROM providing product and status monitoring information, which can be read by the host system.

Product Details

NVIDIA/Mellanox® Compatible MFS1S50-H010E Vendor Name LightOptics®
Form Factor QSFP56 to 2x QSFP56 Max Data Rate 212.5Gb/s
Wavelength 850nm Cable Length 10m (33ft)
Modulation Format 4x 50Gb/s PAM4 modulation Bit Error Rate (BER)  Better than 1E-15
Jacket Material LSZH Minimum Bend Radius 30mm
Cable Type MMF DDM Support Yes
Transmitter Type 850nm VCSEL Receiver Type PIN
Operating Case Temperature 0 to 70°C (32 to 158°F) Voltage Supply 3.3V
Protocols QSFP56 MSA, CMIS
IEEE 802.3cd 200GBASE-SR4
Maximum Power < 5W (200G QSFP56),
< 3W (100G QSFP56)
Storage Temp. -40 to 85 °C
Application 200GBASE-SR4 to 2x 100GBASE-SR2 Ethernet, 200G InfiniBand HDR


Part Numbers and Descriptions

Part Number Description
MFS1S50-H003E  Mellanox active fiber splitter cable, IB HDR, 200Gb/s to 2x100Gb/s, QSFP56 to 2xQSFP56, LSZH, 3m
MFS1S50-H005E  Mellanox active fiber splitter cable, IB HDR, 200Gb/s to 2x100Gb/s, QSFP56 to 2xQSFP56, LSZH, 5m
MFS1S50-H010E  Mellanox active fiber splitter cable, IB HDR, 200Gb/s to 2x100Gb/s, QSFP56 to 2xQSFP56, LSZH, 10m
MFS1S50-H015E  Mellanox active fiber splitter cable, IB HDR, 200Gb/s to 2x100Gb/s, QSFP56 to 2xQSFP56, LSZH, 15m
MFS1S50-H020E  Mellanox active fiber splitter cable, IB HDR, 200Gb/s to 2x100Gb/s, QSFP56 to 2xQSFP56, LSZH, 20m
MFS1S50-H030E  Mellanox active fiber splitter cable, IB HDR, 200Gb/s to 2x100Gb/s, QSFP56 to 2xQSFP56, LSZH, 30m
