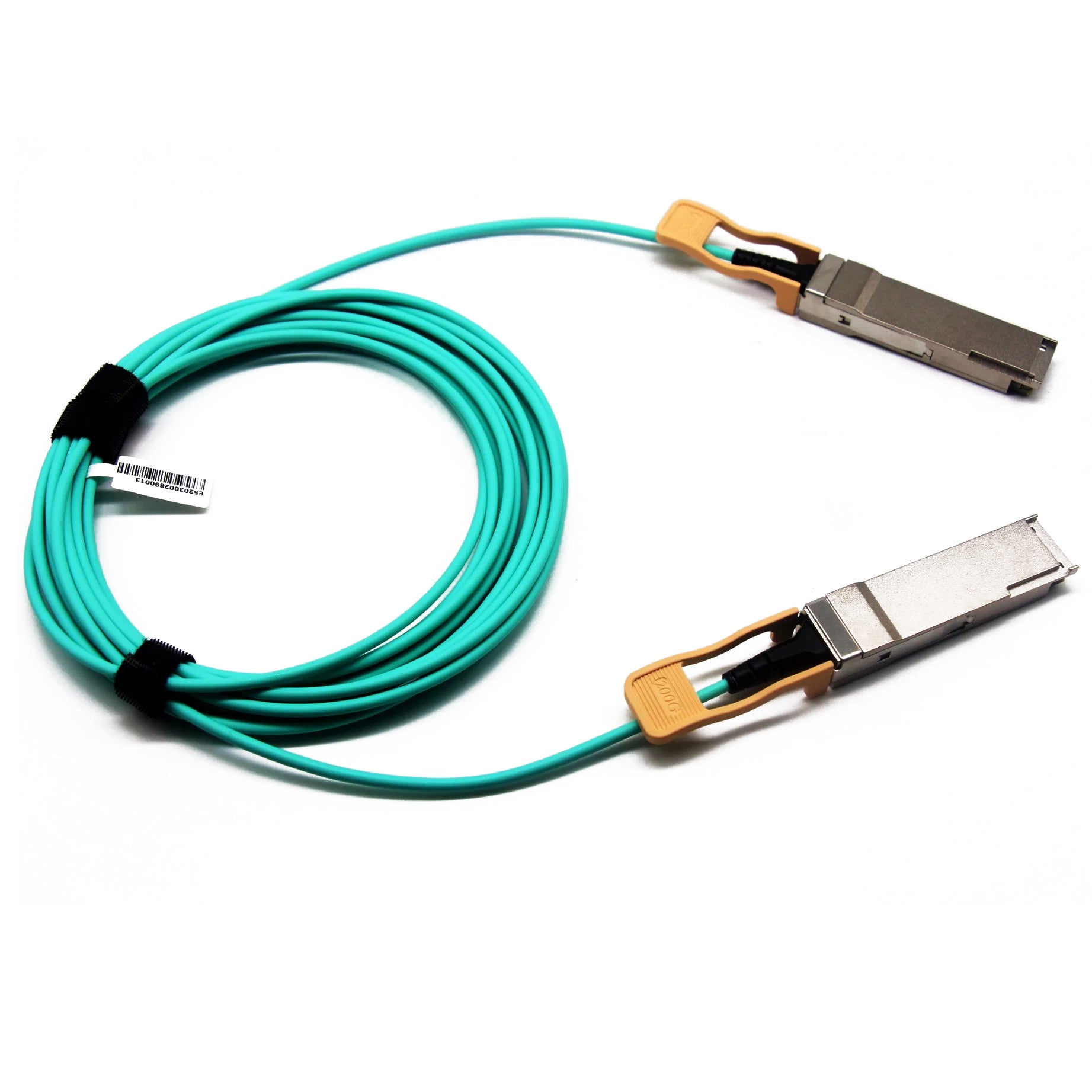

5m NVIDIA MFS1S00-H005E Compatible 200G QSFP56 InfiniBand HDR LSZH Active Fiber Cable (850nm , MMF)
NVIDIA/Mellanox MFS1S00-H005E Compatible QSFP56 IB 200Gb/s InfiniBand HDR (High Data Rate) AOC Active Optical Cable 5m (16ft)
This 200G AOC cable is a QSFP56 VCSEL-based (Vertical Cavity Surface-Emitting Laser), costeffective 200Gb/s to 2 x 100Gb/s active optical splitter cable (AOC) designed for use in 200Gb/s InfiniBand HDR (High Data Rate) systems. It is compliant with SFF-8665 for the QSFP56 pluggable solution. It provides connectivity between system units with a 200Gb/s connector on one side and two separate 100Gb/s connectors on the other side, such as a switch and two servers. The cable connects data signals from each of the 4 MMF (Multi Mode Fiber) pairs on the single QSFP56 end to the dual pair of each of the QSFP56 multiport ends. Each QSFP56 end of the cable comprises an EEPROM providing product and status monitoring information, which can be read by the host system.
Product Details
NVIDIA/Mellanox® Compatible | MFS1S00-H005E | Vendor Name | LightOptics® |
Form Factor | QSFP56 to QSFP56 | Max Data Rate | 212.5Gb/s |
Wavelength | 850nm | Cable Length | 5m (16ft) |
Modulation Format | 4x 50Gb/s PAM4 modulation | Bit Error Rate (BER) | 1E-13~1E-15 |
Jacket Material | LSZH | Minimum Bend Radius | 30mm |
Cable Type | MMF | DDM Support | Yes |
Transmitter Type | 850nm VCSEL | Receiver Type | PIN |
Operating Case Temperature | 0 to 70°C (32 to 158°F) | Voltage Supply | 3.3V |
Protocols | QSFP56 MSA, CMIS IEEE 802.3cd 200GBASE-SR4 |
Maximum Power | 4.35W Power Dissipation |
Storage Temp. | -40 to 85 °C |
Application | 200GBASE-SR4 Ethernet, 200G InfiniBand HDR |
