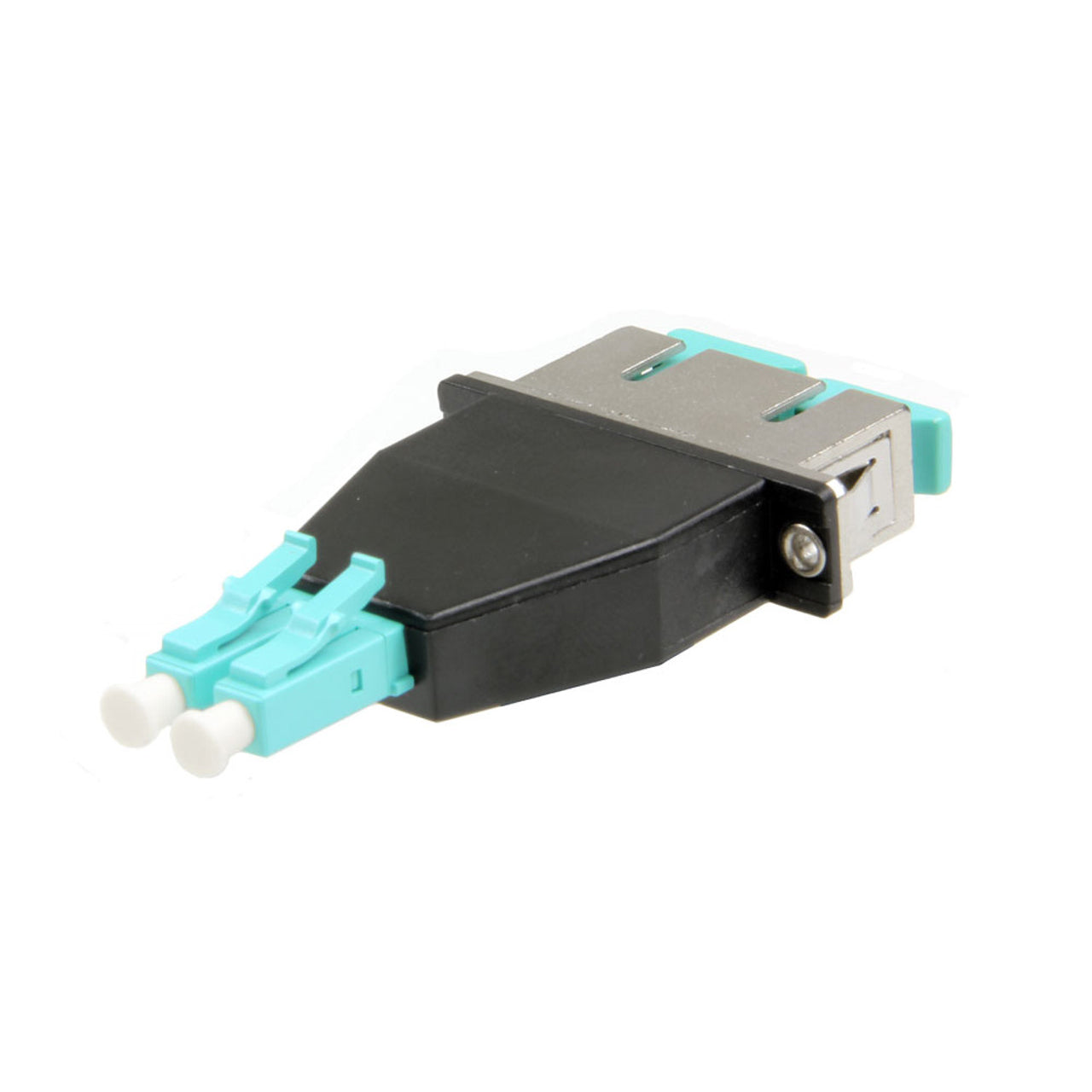

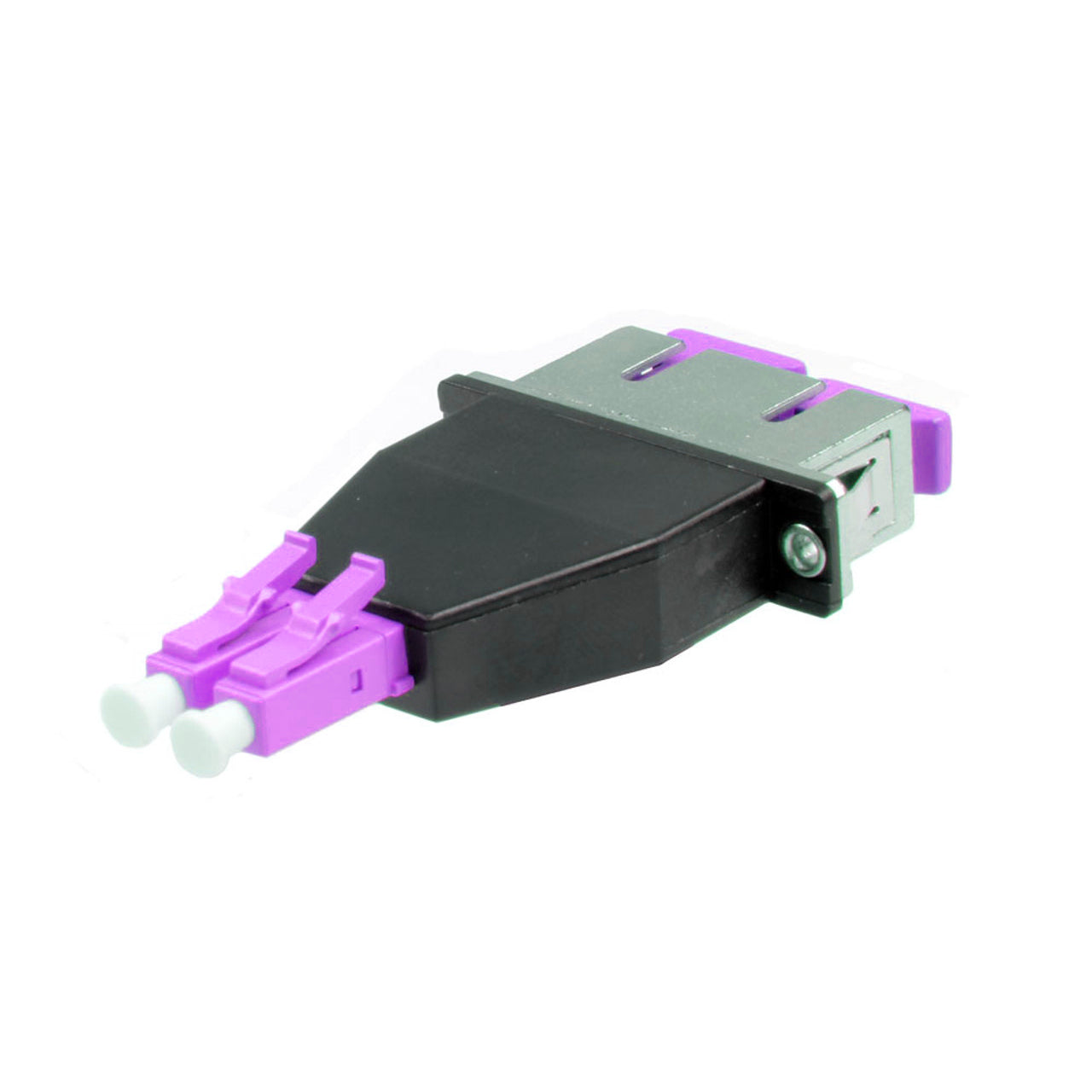

LC/UPC male to SC/UPC Female Duplex Multimode OM3/OM4 Fiber Optic Adapter
The LC Male to SC Female Duplex Multimode OM3/OM4 Hybrid Fiber Adapter provides a solution for hybrid applications where the two different kinds of fiber connectors or cable assemblies need to be linked with each other. Most of the hybrid fiber adapter enable reliable ferrule mating and ensure low insertion loss and return loss during the linking.
The main function of simplex hybrid fiber optic adapter is for connection between various different fiber optic connectors, fiber optic patch cords, fiber optic pigtails and fiber optic equipments, different shapes, but it offers the point-to-point connection in the fiber optic network.
Compare OM1 vs OM2 vs OM3 vs OM4 vs OM5 Multimode Fiber
The max multimode fiber distance comparison at different data rate, and fiber core diameter, jacket color are specified below. Please NOTE that for OM2, OM3, OM4 and OM5 compatibility, the higher is completely backwards compatible with lower since they have the same core diameter.
| Fiber Type | Diameter | Color | Fast Ethernet | 1GbE | 10GbE | 40GbE | 100GbE |
| OM1 | 62.5/125µm | Orange | 2000m | 275m | 33m | / | / |
| OM2 | 50/125µm | Orange | 2000m | 550m | 82m | / | / |
| OM3 | 50/125µm | Aqua | 2000m | / | 300m | 100m | 70m |
| OM4 | 50/125µm | Aqua/Magenta | 2000m | / | 550m | 150m | 150m |
| OM5 | 50/125µm | Lime Green | / | / | 550m | 150m | 150m |
Features
- SC style to LC style
- Use in Multimode OM3/OM4 fiber connection applications
- Free-hanging or panel-mount design
- RoHS Compliant
