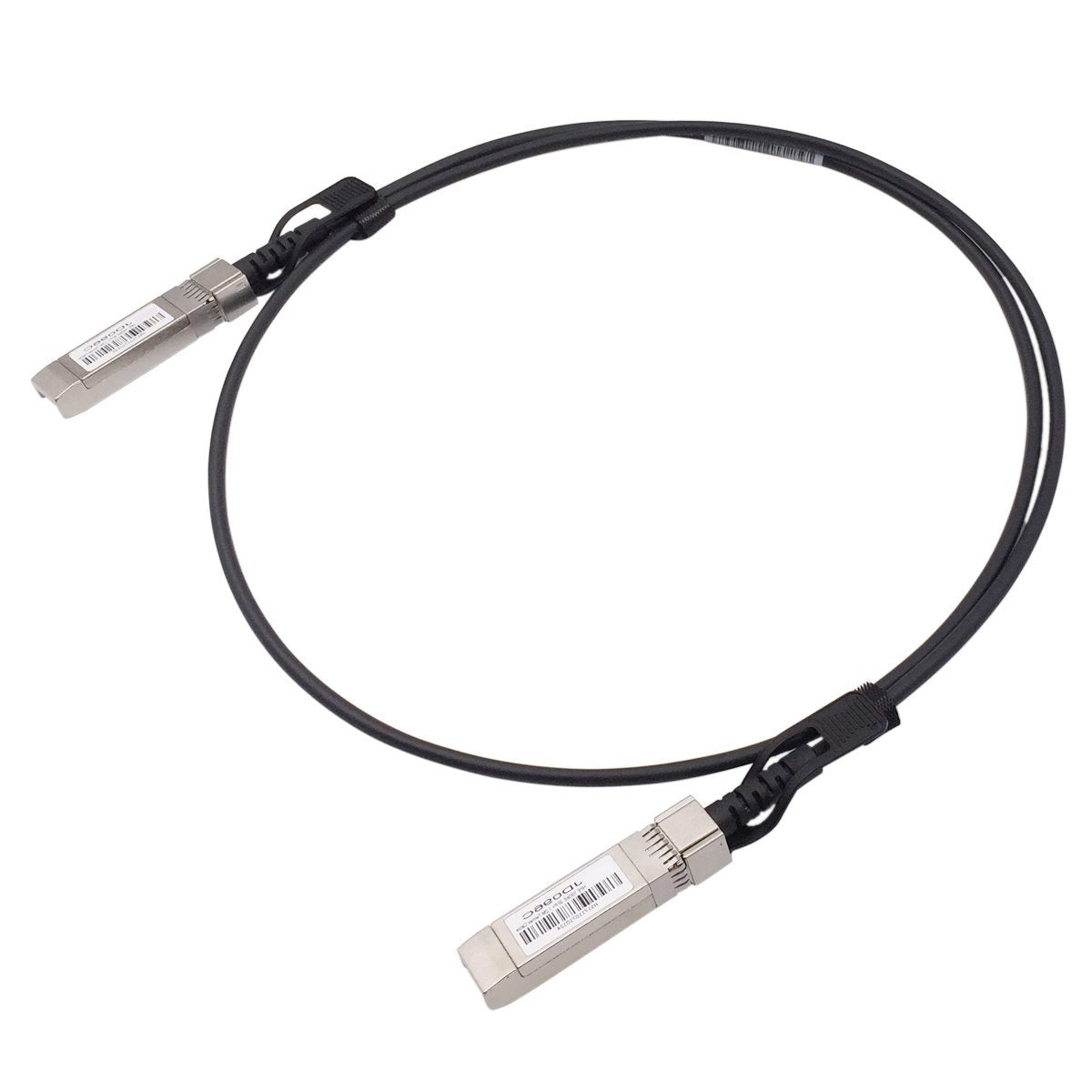

1.2m HPE JD096B Compatible 10G SFP+ Passive Direct Attach Copper Twinax Cable
1.2m HPE JD096B Compatible 10G SFP+ Passive Direct Attach Copper Twinax Cable
This JD096B compatible SFP+ DAC is a high performance and cost-effective direct attach copper cable with a length of 1.2 meters. It supports the bandwidth transmission requirements as defined by 10 Gigabit-Ethernet (10GBase-CU), 8G Fiber Channel (FC) and 10G Fiber Channel over Ethernet (FCoE). The product is designed for short reach links in high-speed interconnecting networking applications such as high-performance computing (HPC), enterprise networking including top-of-rack switching and network storage markets. It is programmed to works with HP 10G switches, routers, network interface cards (NICs), and network storage systems. It’s proven to be a cost-effective alternative to high-cost HP X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable (JD096B).
Features
• Functionally identical to HP JD096B
• Support for multi-gigabit data rates up to 10.5Gbps
• I/O Connector designed for high-speed differential signal applications
• Improved Pluggable Form Factor (IPF) compliant for enhanced EMI/EMC performance
• Single 3.3V power supply
• Operating temperature range: 0 to 70°C
• RoHS Compliant and Lead-Free
Specification
| HPE compatible | JD096B | Vendor | LightOptics |
| Form Factor | SFP+ DAC Cable | Data Rate | 10.5Gb/s |
| Passive or actively equalized | Passive | Supply Voltage | 3.3V |
| Cable Length | 1.2 m | Cable impedance | 100 Ω |
| Cable Type | Twinax | Wire Gauge | 30AWG |
| Minimum cable bend radius | 25 mm | Cable Jacket Type | PVC |
| Connector | SFP+/SFP+ | Digital Diagnostic Monitoring | N/A |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.1 kg |
| Application | Storage Area Networks( SAN)
Network Attached Storage Switched fabric I/O High density connections between networking equipment Data center cabling infrastructure |
Compliance | SFF-8472,SFF-8431
IEC/EN 61000-4-2 MIL-STD-883E, RoHS |
Compatibility
• HPE OfficeConnect 1950 24G 2SFP+ 2XGT Switch JG960A
• HPE OfficeConnect 1950 48G 2SFP+ 2XGT Switch JG961A
• HPE OfficeConnect 1950 24G 2SFP+ 2XGT PoE+ Switch JG962A
• HPE OfficeConnect 1950 48G 2SFP+ 2XGT PoE+ Switch JG963A
• HP 5500-24G SI Switch JD369A
• HP 5500-48G SI Switch JD370A
• HP 5500-24G-PoE+ SI Switch with 2 Interface Slots JG238A
• HP 5500-48G-PoE+ SI Switch with 2 Interface Slots JG239A
• HPE 5510 24G 4SFP+ HI 1-slot Switch JH145A
• HPE 5510 48G 4SFP+ HI 1-slot Switch JH146A
• HPE 5510 24G PoE+ 4SFP+ HI 1-slot Switch JH147A
• HPE 5510 48G PoE+ 4SFP+ HI 1-slot Switch JH148A
• HPE 5510 24G SFP 4SFP+ HI 1-slot Switch JH149A
• HPE FlexFabric 5700 40XG 2QSFP+ Switch JG896A
• HPE FlexFabric 5700 48G 4XG 2QSFP+ Switch JG894A
• HPE FlexFabric 5700 32XGT 8XG 2QSFP+ Switch JG898A
