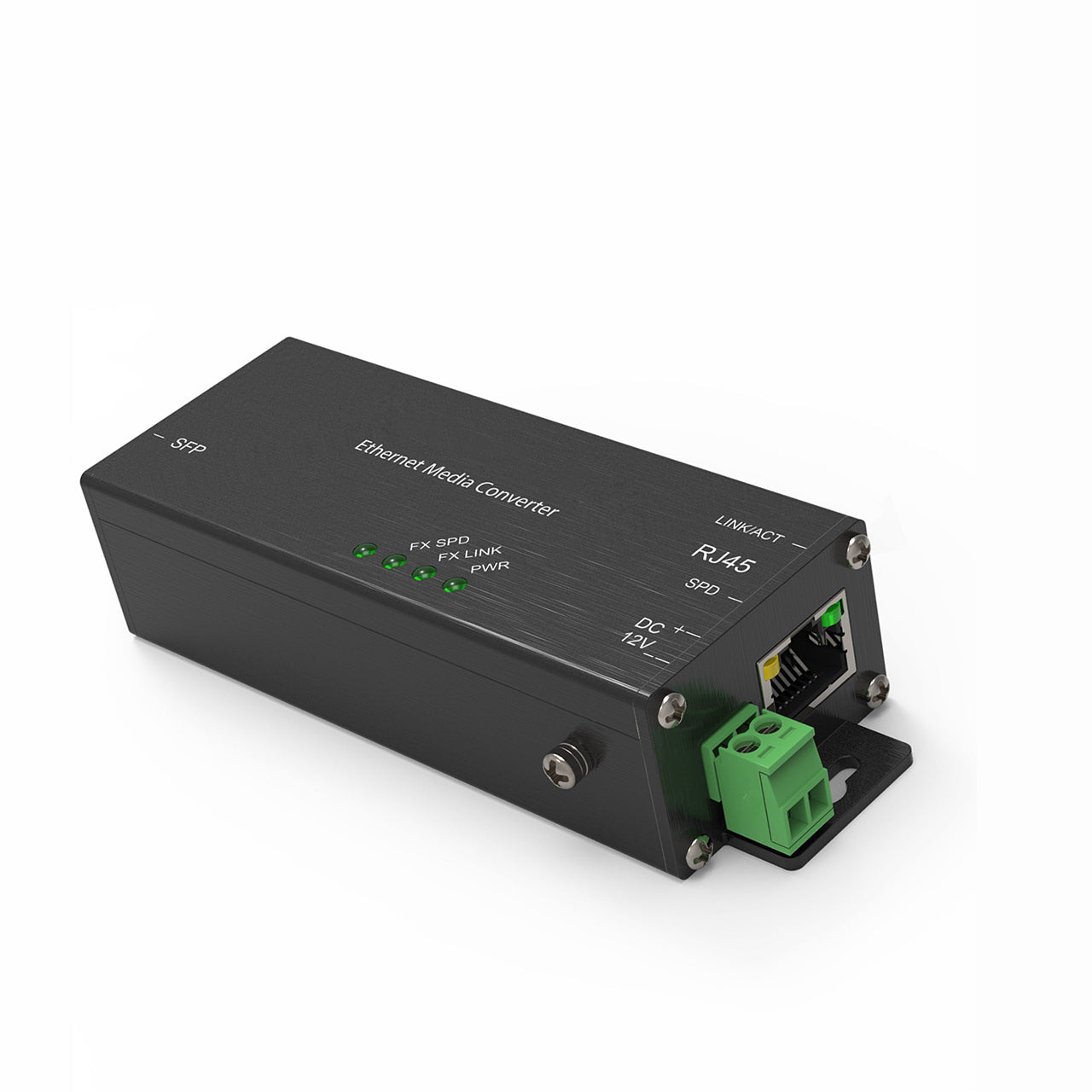

Mini Industrial 10/100/1000Base-T RJ45 to 1000Base-X SFP Fiber Media Converter
Mini Industrial 10/100/1000Base-T RJ45 to 1000Base-X SFP Fiber Media Converter
The Industrial Fiber Media Converter provides cost-effective, entry-level media conversion between 1×10/100/1000Base-TX ports and 1000Base-X SFP ports. With its fixed configuration, deployments are just plug-and-play, and with it is small size, it is ideal for locations where space is limited. It is able to operate under temperatures ranging from -40°C to 75 °C and is with IP40 rugged case to make sure continuous operation in harsh environments such as transportation, factories, outdoors, and places where extremely low or high temperatures can be experienced.
Product Features
- 10/100/1000Mbps Full/Half Duplex, Auto Negotiation and Auto-MDI/MDIX
- Choice of LC SFP Connectors for MM & SM
- Robust IP40 Aluminum Metal Enclosure for Harsh Environments
- Operate stably under the Temperature Range of -40 – 75℃
- LED Indicates Diagnostic & DIP-switch Ethernet OAM
- Support IEEE 802.3x Flow Control
- Both Desktop and Wall Mounting installation
Product Specifications
| Ethernet Interface | |
| Ports | 1×10/100/1000Base-TX RJ45 ports, 1×100/1000Base-FX SFP/SC ports |
| Pors Mode(Tx) | Auto Negotiation Speed
Full/Half Duplex Mode Auto MDI/MDI-X Connection |
| Standards | IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow control |
| Maximum Packet Length | Up to 10K |
| Forward Filter Rate | 14,880pps(10Mbps)
148,800pps(100Mbps) 1,488,000pps(1000Mbps) |
| Transmission Mode | Store and Forward (full/half duplex mode) |
| Transmission Distance | |
| SFP Port | Depends on optical module(0-160km) |
| RJ45 Port Transmission Distance | 100m（using standard CAT5/CAT5e cable） |
| Power Information | |
| Input Power | 12VDC |
| Power Consumption | 2.4W Max. 0.2A@12VDC |
| Physical Characteristics | |
| Housing | Aluminum case |
| IP Rating | IP40 |
| Dimensions | 36.2mm*117mm*24.5mm |
| Installation Mode | Wall Mounting |
| Weight | 0.15Kg |
| Working Environment | |
| Operating Temperature | -30℃~+75℃ (-40 to 167 ℉) |
| Operating Humidity | 5%~90% (non-condensing) |
| Storage Temperature | -40℃~85℃ (-40 to 185 ℉) |
