FC/APC High Vacuum Fiber Optic Feedthrough CF35 with pigtail and adapter interface

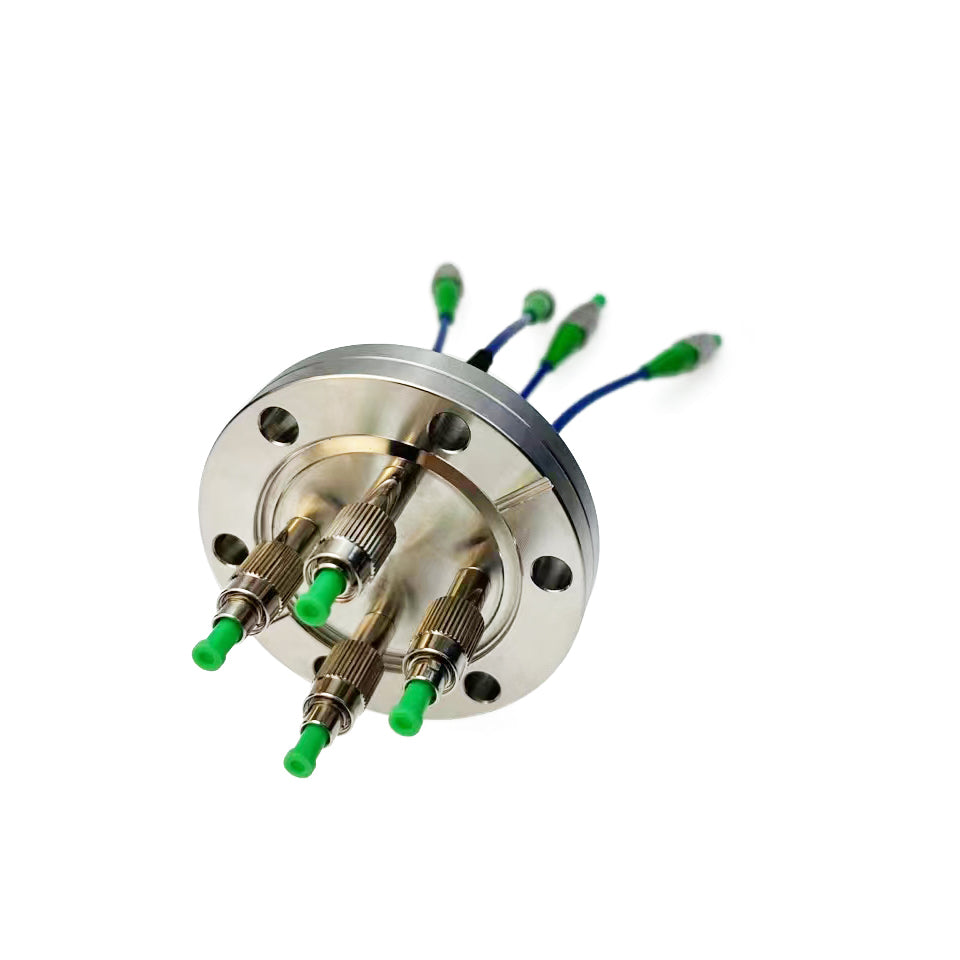

High Vacuum Fiber Optic Feedthrough CF35 with pigtail and adapter interface, FC/APC connector, 4-core
Vacuum hybrid feedthroughs are available with FC and SMA905 adapter interfaces and with many kinds of optical fibers (SM, MM and PM). Optical fiber may be protected by PTFE tubing or by flexible stainless steel braiding.
Vacuum hybrid fiber feedthrough can be completely disassembled and thus easily replaced within its housing flange or as part of flange within mounting wall.
Hybrid feedthroughs are available with pigtailed terminations on natural air pressure side or on vacuum side and are shipped either as standalone items or as pre-mounted in standard or customized flanges.
Product Specification options:
SMA905 or FC/APC adapter interface
Pigtailed terminations according to customer specifications
PM, SM and MM fiber types
Low insertion loss
HV and UHV compatible
Stable within specified temperature range
Shipped as standalone item or in KF or CF flange
High Vacuum (HV) & Ultra High Vacuum (UHV) Feedthroughs
| Sealed fibers | SM & MM (GRIN/STEP) | PM |
| Wavelength range | UV, VIS, NIR | VIS, NIR |
| Extinctio ratio | / | >20 or > 25dB |
| Angle missalingment | / | ± 2.5° |
| Operating temperature | -40 + 85°C | -20 + 70°C |
| Hermeticity | 10 10 to 10 12 mbar.l/s | |
| Flange type | CF, KF, without flange | |
| Flange material | 304, 304L, 316L, others | |
| Housing material | 304L, 316L | |
| Pigtail interface | FC/PC, FC/APC, SMA905, LC/PC, LC/APC, ... | |
| Adapter interface | FC/PC, FC/APC, SMA905 | |
| Fiber sleeving (loose tubing) | PTFE (OD=900um), Stainless steel flexible tubing (O=3mm) | |
