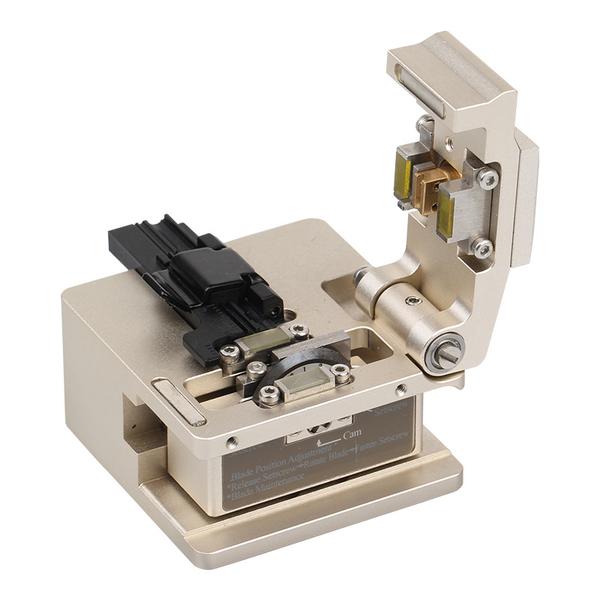

High Precision Fiber Cleaver
The Fiber Optic Cleaver offers all of the quality and features of Fitel, AFL and other brand name cleavers - all at a very affordable price! The is an extremely high quality cleaver designed for .25mm and .90mm fiber. This Cleaver is not only simple to operate, it is simple to adjust. The included hex wrench stored on the bottom of this unit allows for adjusting the cleaving position to the perfect spot. The blade on the is replaceable.
Also included with the Fiber Cleaver is an operation Guide and protective carrying pouch.
Three function in one : drop cable,patch cord,bare fiber
Fiber diameter : 125um
Cutting length :9-16mm 10-16mm
Cutting angle : ≤0.5°
Cutting time: 48000 times
Product size :55*61*60mm
Weight:268g
Specifications:
Compatible with: Single Fiber
Fiber (Coating) Diameters: .25mm and .9mm
.25mm Cleaving Length: 9-16mm
.9mm Cleaving Length: 10-16mm
Cleaving Angle: 0.5°
Blade Life: 48,000 cycles
Weight: .58lbs (265g)
Dimensions: 2.2in x 2.16in x 1.89in (56mm x 55mm x 48mm)
OPERATING INSTRUCTIONS
Before You Start - Make sure the fiber trash can is open and the Sliding Block is pushed forward.
1. Open the Fiber Clamp and Cover Plate and put bare fiber (≥18mm or ≥0.7”) into the Fiber
Holder. Align the stripped jacket of the fiber with the ruler to cleave to specific lengths of fiber.
2. Position the fiber so that it is past the Cleaving Blade. Then, close the Fiber Clamp and Cover
Plate to hold the fiber in place. Ensure the fiber is straight and even before cleaving.
Gently push the Sliding Block to the back of the unit only once to cleave the fiber.
4. Open the Cover Plate and Fiber Clamp and remove the cleaved fiber. Do not allow the face of
the fiber to contact any surface.
5. Close the Cover Plate, Fiber Clamp, and Fiber Trash Can. If the Trash Can is full, dispose of the
contents carefully by tipping them into a separate fiber disposal container.
SAFETY & CONTENTS
Do not use excess force when using the fiber cleaver. Regularly clean any dirt on the Fiber Clamp with alcohol. Do not use acetone or another corrosive solvent when cleaning the Fiber Clamp. Consistently clean the fiber box and ensure no dust or oil dirties the slot.
