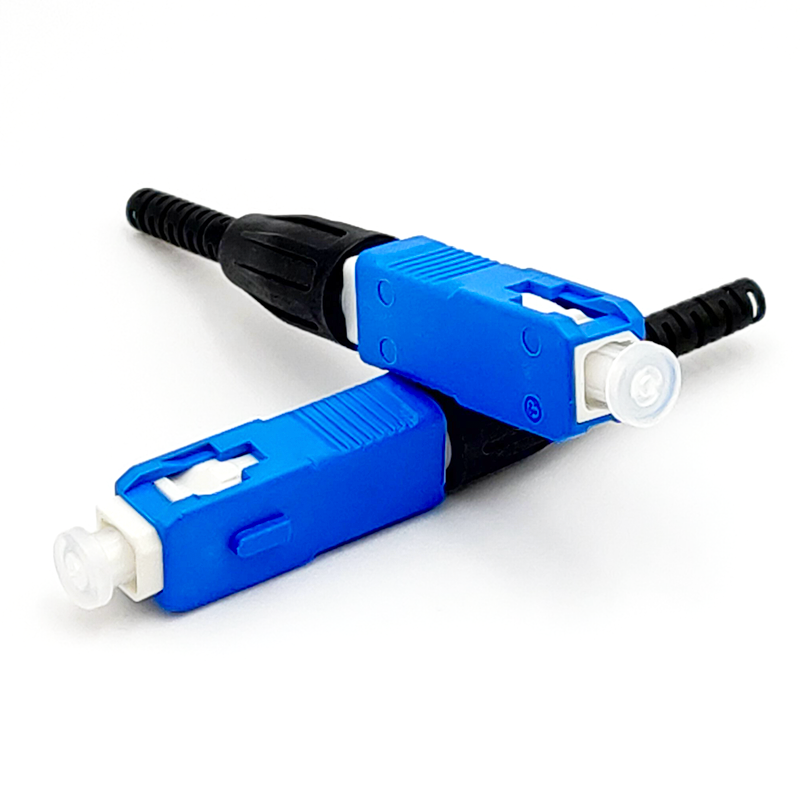

FC-ESC925T SC/UPC SM FTTH Fiber Optic Fast Connector
The Mechanical Field-Mountable FC-ESC925T SC Fast Connectoris designed to simple the connection without fusion splicing machine.
This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver.
The connector adopts Fiber Pre-Embedded Tech with superior ceramic ferrule and aluminum alloy V-groove and transparent design of the side cover which allows visual inspection.
Application:
It could be applied to drop cable and indoor cable.
FTTx, Data Room Transformation.
The connector can be directly used in ONU, also with fasten strength more than 5 kg, it is widely used in FTTH project of network revolution. It also reduce the use of sockets and adapters, save cost of project.
With 86 standard socket and adapter, the connector makes connection between drop cable and patch cord.
The 86 standard socket provides complete protection with its unique design.
Specifications:
| FC-ESC925T | |
| Item | Paramete |
| Cable Scope | ��3.0 mm & ��2.0 mm Cable |
| ��0.9 invisible cable | |
| 2.0x3.0mm drop cable | |
| Fiber Diameter | 125μm ( 652 & 657 ) |
| Coating Diameter | 250&900μm |
| Fiber mode | SM |
| Operation Time | about 2min��exclude fiber presetting�� |
| Insertion Loss | ≤ 0.5 dB��1310nm & 1550nm��, Classic Value: 0.3dB |
| Return Loss | ≥50dB for UPC, ≥55dB for APC |
| Success Rate | >98% |
| Reusable Times | >10 times |
| Tighten Strength of Bare Fiber | >3N |
| Tensile Strength | >30 N/2min |
| Teperature | -40~+85�� |
| On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
| Mechanical Durabiltiy (500 times mating) | IL≤0.3 dB�� RL��5 dB |
| Drop Test(4m concrete floor, once each direction, three times total) | IL ≤ 0.3dB |
