QSFP-DD 400G-ZR 120km Coherent Tunable DWDM Transceiver Module

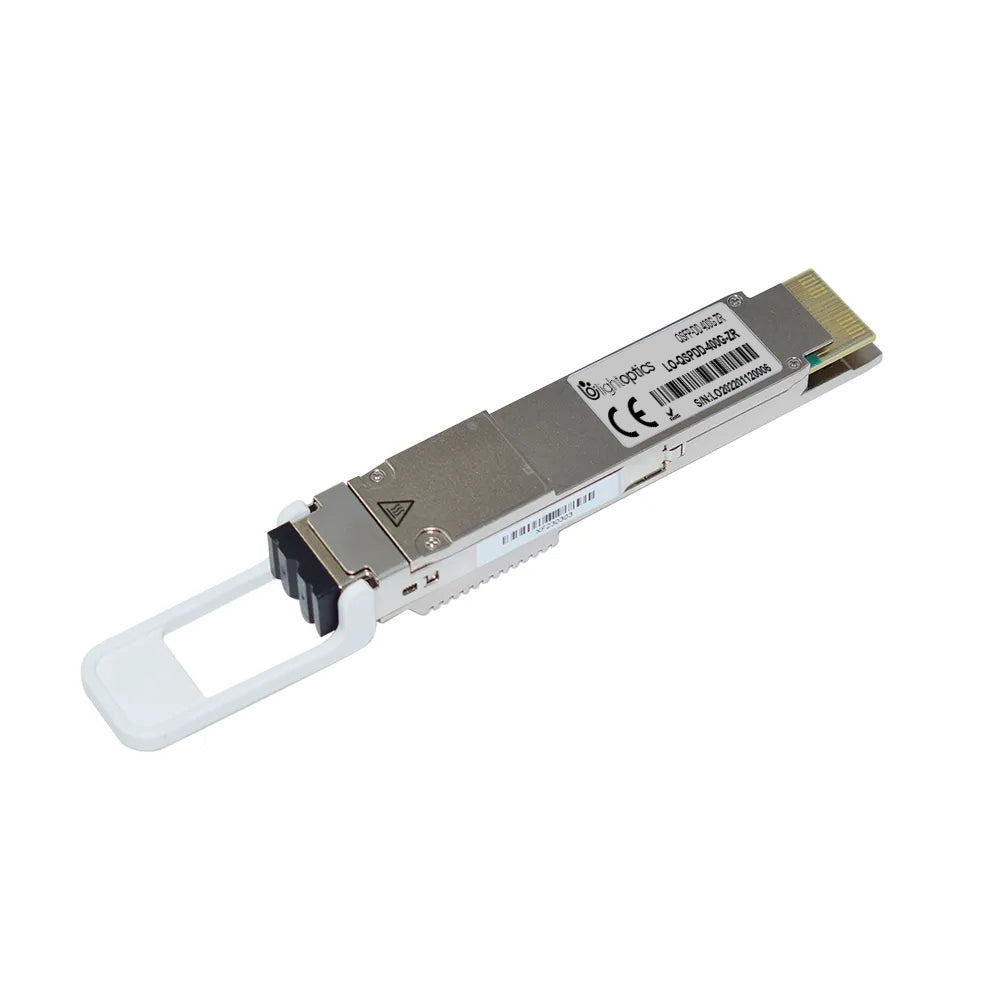

400GBASE-ZR QSFP-DD 120km Tunable DWDM Coherent Transceiver for Data Center Interconnection (120 km, 49 Channels, 100GHz Grid, C-Band, LC-Duplex, Singlemode)
What is 400G ZR?
400G ZR is a simple and low cost standard for transmitting 400 gigabit Ethernet over data center interconnection links up to 100 km using DWDM (dense wavelength division multiplexing) and higher order modulation such as 16 QAM. The solution is proposed to be available in a small form factor modules such as OSFP or DD-QSFP.
Why is 400G ZR important?
400G ZR reduces cost and complexity for high bandwidth data center interconnects. Higher order modulation and DWDM unlock high bandwidth, but typically require proprietary coordination at both ends of the fiber. With 400G ZR, you can mix-and-match modules at both ends, something that was previously impossible.
How to use 400G ZR?
Use 400GBASE-ZR QSFP-DD transceiver for 120km or less, amplified, point-to-point, DWDM noise limited link.
Type 1 link: 400G Switch or Router <----->400G Transponder<----->400G Transponder<----->400G Switch or Router
Type 2 link: 400G Switch or Router <----->DWDM Mux/Demux Amplifier<----->DWDM Mux/Demux Amplifier<----->400G Switch or Router
Type 3 link: 400G Switch or Router <----->400G Transponder<----->DWDM Mux/Demux Amplifier<----->400G Transponder<----->DWDM Mux/Demux Amplifier<----->400G Switch or Router
- For 400GBASE-ZR Ethernet links
- Integrated Clock-Data-Recovery (CDR)
- 16QAM modulated signal
- 120 km for amplified links (min rx -12 dBm with OSNR >26 dB)
- Supported Data Rates: 425 Gbit/s
- Up to 120 km via Singlemode OS2
- LC-Duplex Connector
SPECIFICATION
| FORM FACTOR | QSFP-DD | PROTOCOLS | 400G Ethernet, OTU4 |
| CONNECTOR / POLISH | LC-Duplex PC | WAVELENGTH RX (RANGE) | 1528.8 - 1567.1 nm |
| INTERFACE | Singlemode DWDM 100GHz | LASER | EML |
| TYPE | 400G-ZR | RECEIVER TYPE | Coherent |
| DISTANCE | 120 km | MODULATION | 16QAM |
| TEMPERATURE RANGE | 0°C - 70°C | TRANSMIT AND DISPERSION PENALTY | 0.5 dB |
| BANDWIDTH | 425 Gbit/s | POWER CONSUMPTION | 16.5 W |
| DIGITAL DIAGNOSTIC MANAGEMENT (DDM) | Yes, internally calibrated | POWERBUDGET (DB) | 2 dB |
| CDR | TX and RX | TRANSMIT MIN/MAX PER LANE | -10 dBm / -6 dBm |
| WAVELENGTH TX (TYPICAL) | tunable DWDM 100GHz | RECEIVER MIN/MAX PER LANE | -12 dBm / 0 dBm (overload) |
| TX TUNEABLE RANGE | 1528.77 - 1567.13 nm | INBUILT FEC | No |
