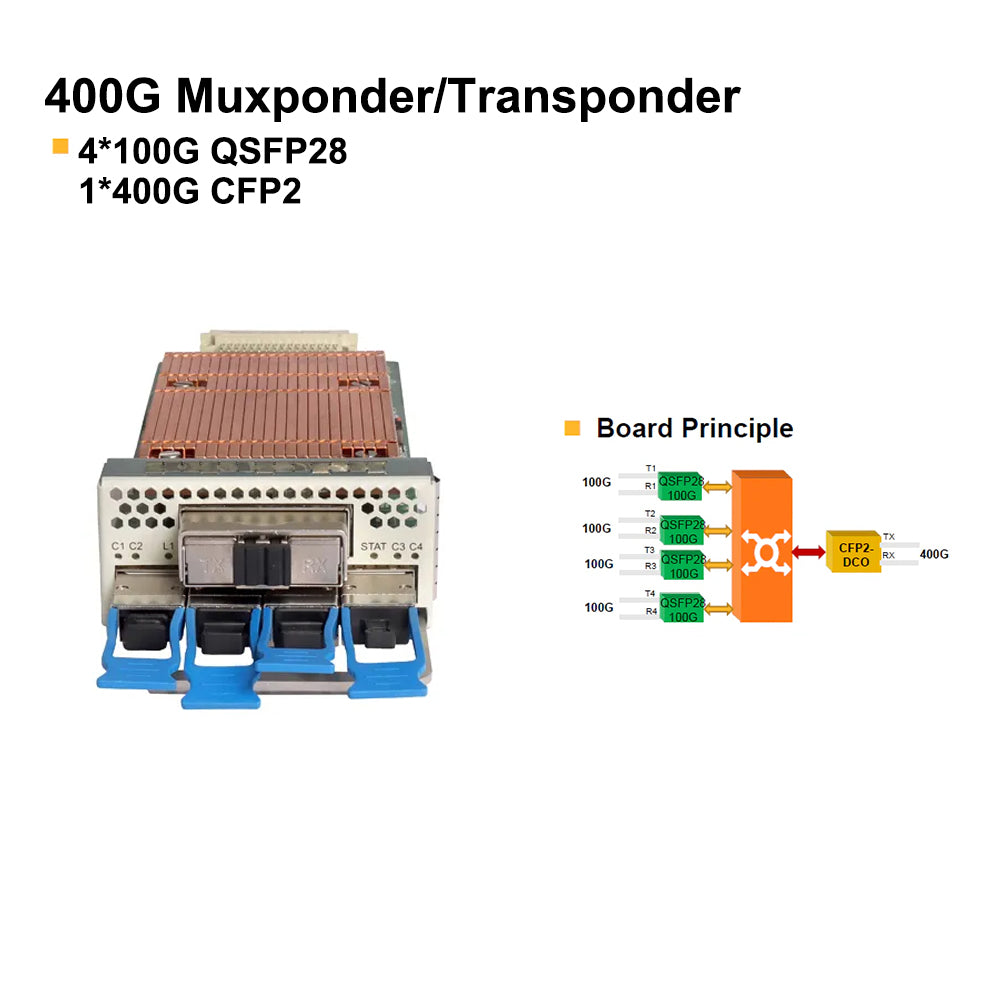

4x 100G QSFP28 to 1x 400G CFP2 Muxponder
4*100G QSFP28 to 1*400G CFP2 muxponder board is used for fiber link 400G business access board, can realize 4*QSFP28 100G conversion CFP2 400G, CFP2 coherent optical module wavelength adjustable, cooperate with DWDM multiplexer/demultiplexer to realize wave Division multiplexing transmission provides a high-quality solution to solve the shortage of optical fiber resources and transmission lines with large loss of optical fiber lines.
Features
- The single board supports 4*100G to 1*400G coherent transmission, which can realize single-channel 400G line-side transmission.
- The wavelength is adjustable, supporting up to 400G 75GHz * 64 waves or 400G*100Ghz 48 waves, 200G 50GHz * 96 waves.
- With flexible coherent modulation technology: DP-16QAM, DP-8QAM, DP-QPSK.
- Multiple FEC error correction technologies: oFEC, CFEC, SCFEC, SDFEC.
- Support flexible service access functions: 100GE, 100GE KR4, OTU4 and 100G FlexE.
- Support perfect performance monitoring and statistical functions.
- Supports Ethernet RMON performance statistics, LLDP monitoring, constellation diagram monitoring, DM delay and PRBS detection functions, OTN PM and SM performance statistics and other functions.
- Supports real-time monitoring of high-precision board temperature, voltage, current and power consumption.
- The client side supports multiple module interface types: 100GSR4/CWDM4/LR4/PSM4.
- Support unified network management platform, network management methods SNMP, CLI, Web, NMS (graphical interface).
Product Specifications
|
Parameters |
Describe |
|
|
Maximum capacity of single board |
4*100G two-way transmission 4*100G one-way transmission |
|
|
Wavelength (frequency) range |
DWDM:1529.16mm-1567.14nm(191.3THz-196.05THz) |
|
|
Adjustment method |
DP-QPSK@100G; DP-16QAM@200G; DP-8QAM@200G; DP-QPSK@200G; DP-8QAM@300G: DP-16QAM@400G |
|
|
Line side protocol |
Open ROADM/Open ZR+/SCFEC |
|
|
Dispersion tolerance |
±40000ps/nm@100G |
|
|
OSNR Tolerance |
<11.5dB@100G DP-QPSK:<18.5dB@200G DP-8QAM;<21.5dB@200G DP 16QAM;<14dB@200G DP-QPSK; |
|
|
Service access type |
100GE、100GE KR4、OTU4和100G FlexE |
|
|
Board size |
81(W)x39(H)x218(D)(mm) |
|
|
Environmental requirements |
Operating temperature |
-5℃~45℃ |
|
Storage temperature |
-40℃~85℃ |
|
|
Relative humidity |
5%~95% non-condensing |
|
|
Product Size |
101(W)x41(H)x230(D)(mm) |
|
|
Power consumption |
<80W |
|
