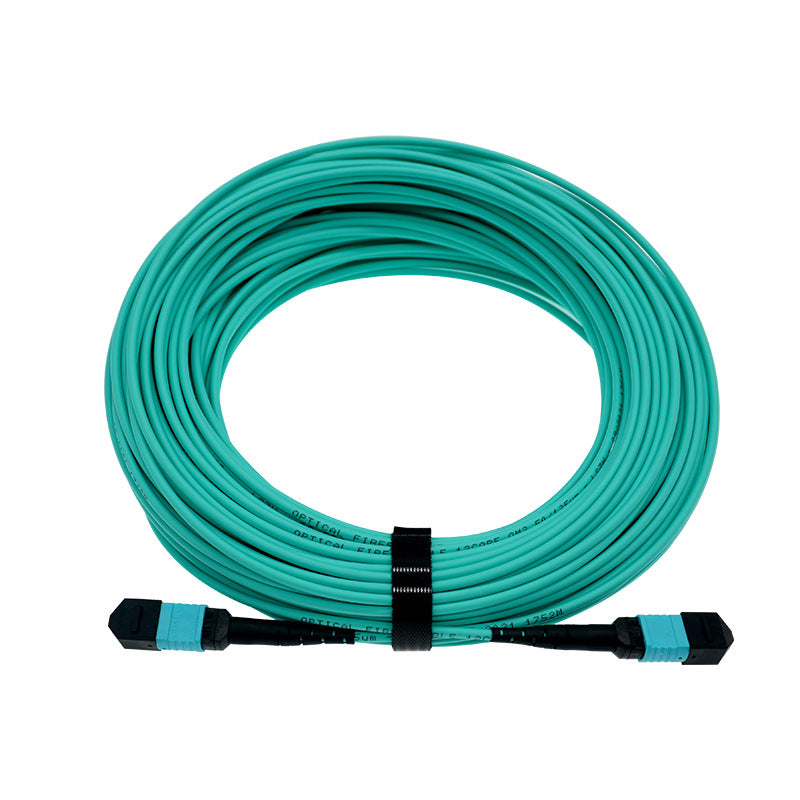

24 Fibers MPO/MTP UPC Female Multimode OM3 Fiber Trunk Cable
24 Fibers MPO/MTP UPC Female to MPO/MTP UPC Female Multimode OM3 Fiber Trunk Cable
Achieve higher density, greater throughput, and less cabling by upgrading your fiber infrastructure to MTP 24-strand fiber connectors and cabling. Our MTP rated fiber jumpers are precision made for maximum performance and longevity. Each MTP jumper is the equivalent of pulling twelve standard duplex cables. The sleek MTP connector design reduces tangling and snagging while routing each termination. The push-pull lock mechanism ensures a reliable connection and makes it easy to engage and disengage the connector without sacrificing security.
Please note: The MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
| Connector A | MTP Female (pinless) | Connector B | MTP Female (pinless) |
| Fiber Mode | 12 fibers OM3 50/125 μm | Wavelength | 850/1300 nm |
| 40/100G Ethernet Distance | 100m at 850 nm | 10G Ethernet Distance | 300m at 850 nm |
| Multi Mode Class | OM3 | RoHS Compliancy Status | Compliant |
| Polish Type | UPC | Minimum Bend Radius | 7.5 mm |
| Insertion Loss | 0.35 dB Max. (0.15 dB Typ.) | Return Loss | ≥ 20 dB |
| Attenuation at 850 nm | ≤ 2.3 dB/km | Attenuation at 1300 nm | ≤ 0.6 dB/km |
| Jacket OD | 3.0 mm | Cable Jacket | LSZH |
| Installation Tensile Load | 66 N | Long/Short Term Tensile Load | 80 N/240 N |
| Storage Temperature | -40°C to 85°C | Operating Temperature | -10°C to 70°C |
