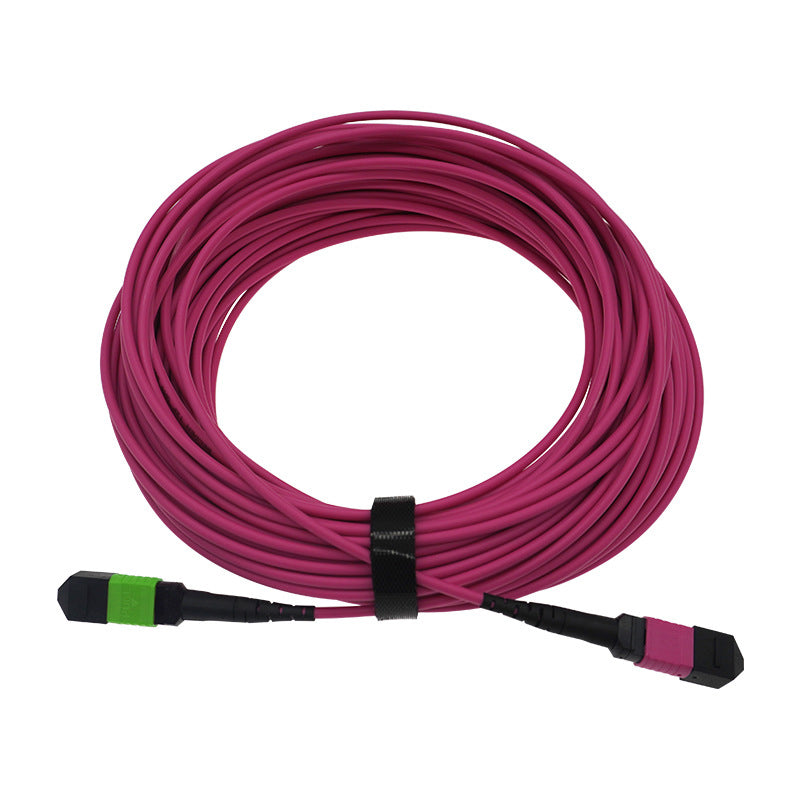

24 Fibers MPO/MTP UPC Female to Male Multimode OM4 Fiber Trunk Cable
24 Fibers MPO/MTP UPC Female to Male Multimode OM4 Fiber Trunk Cable
24 Fibers MPO/MTP Fiber Optic Cable utilizes the advanced 100Gbps technology needed to stay on top of speed requirements in data centers. Complete your tasks more efficiently with this high density data transmission solution.
This 100Gb MTP/MPO fiber cable uses parallel optics technology, enabling it to transmit a single stream of data over multiple optical fibers, which is what makes 100Gb speeds possible.
Using OM4 fiber optics, experience data transfers over a 1Gbps link with a 50/125 micron glass fiber over a distance of up to 1100 meters at a wavelength of 850nm, and over a distance of up to 550 meters at 1300nm. For a 10Gbps link, you can transfer data over a distance of up to 550 meters at 850nm.
Choose Your Polarity
Type A - Straight: Straight-through polarity is typically for connecting patch panels. They are wired in a mirrored configuration, going from Pin 1 on one connector end to Pin 1 on the opposite end, etc.
Type B - Rollover: Rollover polarity is used primarily for connecting to switches and transceivers in 40Gb applications. In a 12-strand rollover polarity, the cable is wired from Pin 1 on one connector end to Pin 12 on the opposite end. Then 2 to 11, and so forth.
Type C - Flipped: Pair-Flipped polarity is the most commonly used polarity type for this cable, and typically used in cassette-to-cassette applications. Pin 1 on one end goes to Pin 2 on the opposite end, and 2 to 1, 3 to 4, 4 to 3, and so on. This is the default polarity option, but you can select your desired polarity from our drop-down menu above.
Please note: The MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
| Connector A | MPO Female (pinless) | Connector B | MPO male (pinned) |
| Fiber Mode | 24 fibers OM4 50/125 μm | Wavelength | 850/1300 nm |
| 40/100G Ethernet Distance | 150m at 850 nm | 10G Ethernet Distance | 400m at 850 nm |
| Multi Mode Class | OM4 | RoHS Compliancy Status | Compliant |
| Polish Type | UPC to UPC | Minimum Bend Radius | 7.5 mm |
| Insertion Loss | 0.35 dB Max. (0.15 dB Typ.) | Return Loss | ≥ 20 dB |
| Attenuation at 850 nm | ≤ 2.3 dB/km | Attenuation at 1300 nm | ≤ 0.6 dB/km |
| Jacket OD | 3.0 mm | Cable Jacket | LSZH |
| Installation Tensile Load | 66 N | Long/Short Term Tensile Load | 80 N/240 N |
| Storage Temperature | -40°C to 85°C | Operating Temperature | -10°C to 70°C |
