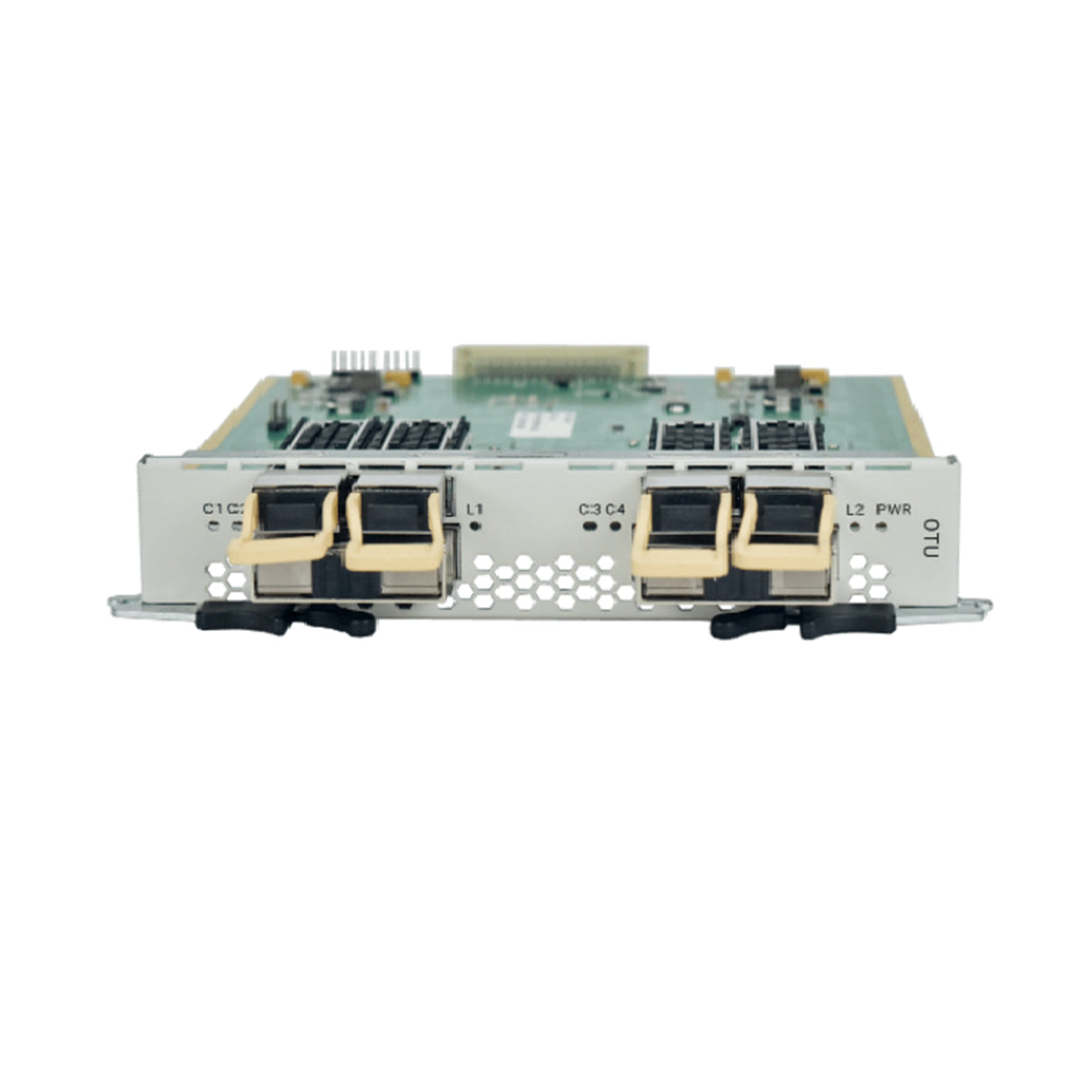

200G CFP2 Muxponders 2 channels 2x 100G QSFP28 to 1x 200G CFP2 OTU 2x 200G

$6,990.00
$6,990.00
Tags:

This 200G CFP2 muxponder provides a high-quality solution for solving transmission lines with insufficient fiber resources and high fiber line loss. Our 200G CFP2 muxponder can realize the wavelength tunable of CFP2 coherent optical module and can be converted into DWDM standard wavelength optical signal. And it can be used to connected with DWDM multiplexer/demultiplexer to realize wavelength division multiplexing transmission. The 2x 200G CFP2 transponder is designed in a 4x 100G service access module for optical fiber links.

FEATURES

  • Support DWDM transmission wavelength conversion.
  • The single card supports 4 channels 100G unidirectional or bidirectional service access.
  • The line side supports 2 channels 200G CFP2 coherent optical modules
  • Supporting multiple client-side service access: 100GBase-SR4/CWDM4/LR4/PSM4.

SPECIFICATIONS

System Parameter Technical Index
Maximum capacity 4x 100G bidirectional transmission;
4x100G unidirectional transmission
Wavelength (frequency) range DWDM: 1529.16nm-1567.14nm(191.3THz-196.05THz)
Modulation DP-QPSK@100G, DP-16QAM@200G, DP-16QAMps@200G, DP-QPSK@200G.
Service access types 100GE, OTU4.
Dispersion tolerance ±40000ps/nm@100G
OSNR tolerance <12dB@100G QPSK, <21dB@200G DP-16QAM, <16dB@200G DP-16QAMps, <13.5dB@200G DP-QPSK.
Dimensions (mm) 177(W)*40(H)*225(D)
Working temperature -10℃ ~ 70℃
Storage temperature -40℃ ~ 80℃
Relative humidity 5% ~ 95% no condensation
Safety and EMC Compliance with FCC, UL, CE, TUV, CSA standards.
Power consumption <78W
