2 Channel Broadcast XLR Audio over Fiber Optical Converter 20km
2 Channel Broadcast XLR Audio over Fiber Optical Converter 20km

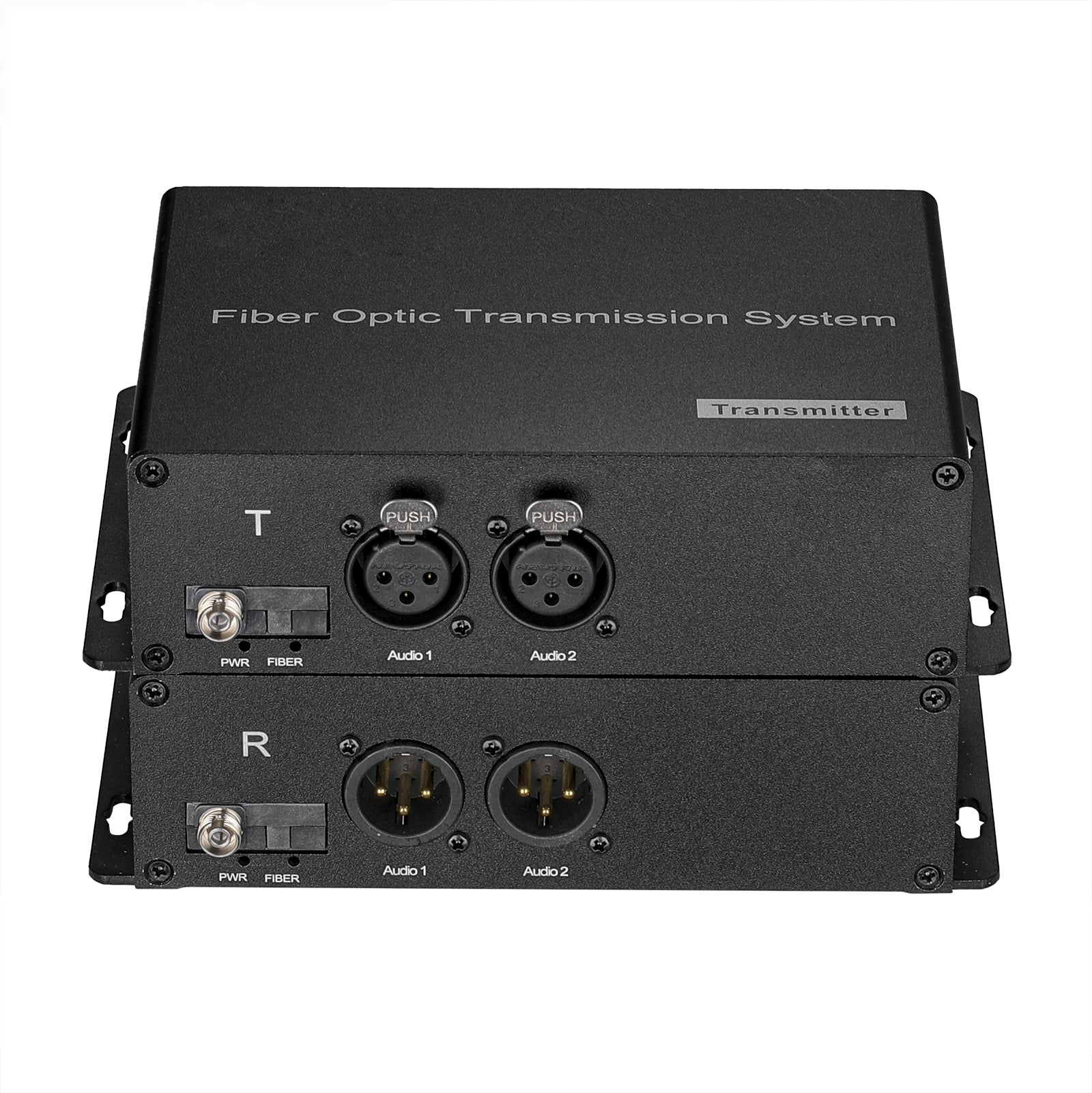

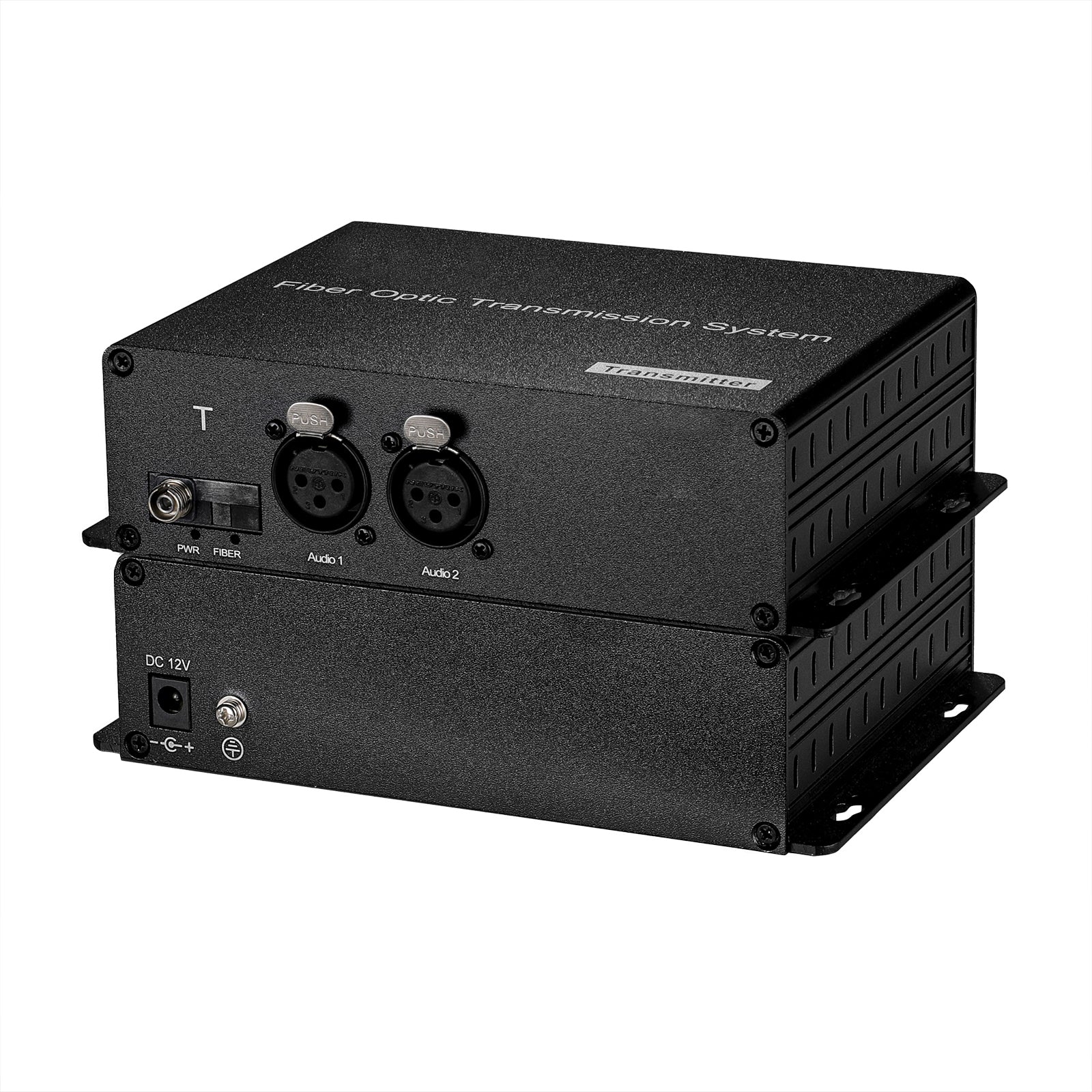

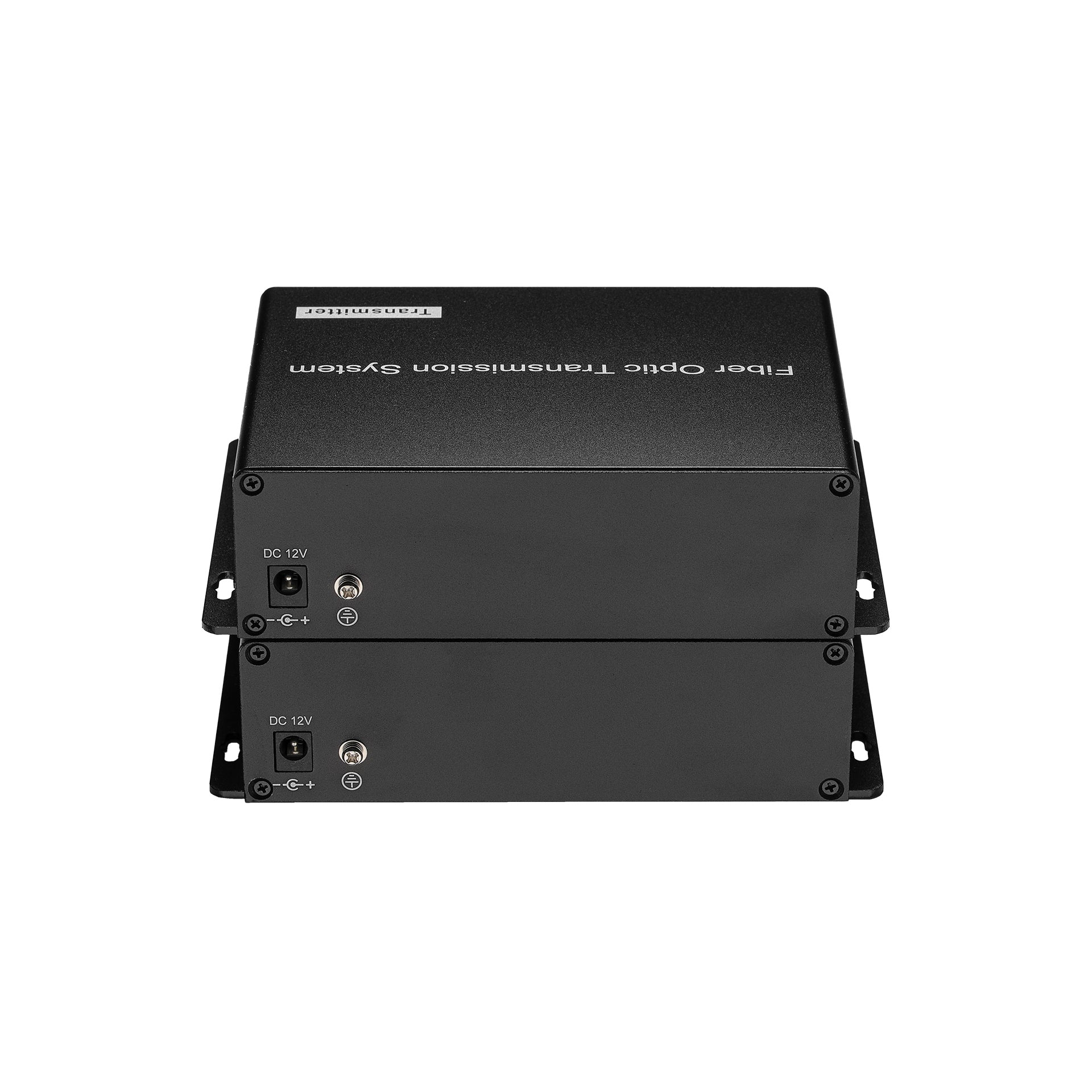

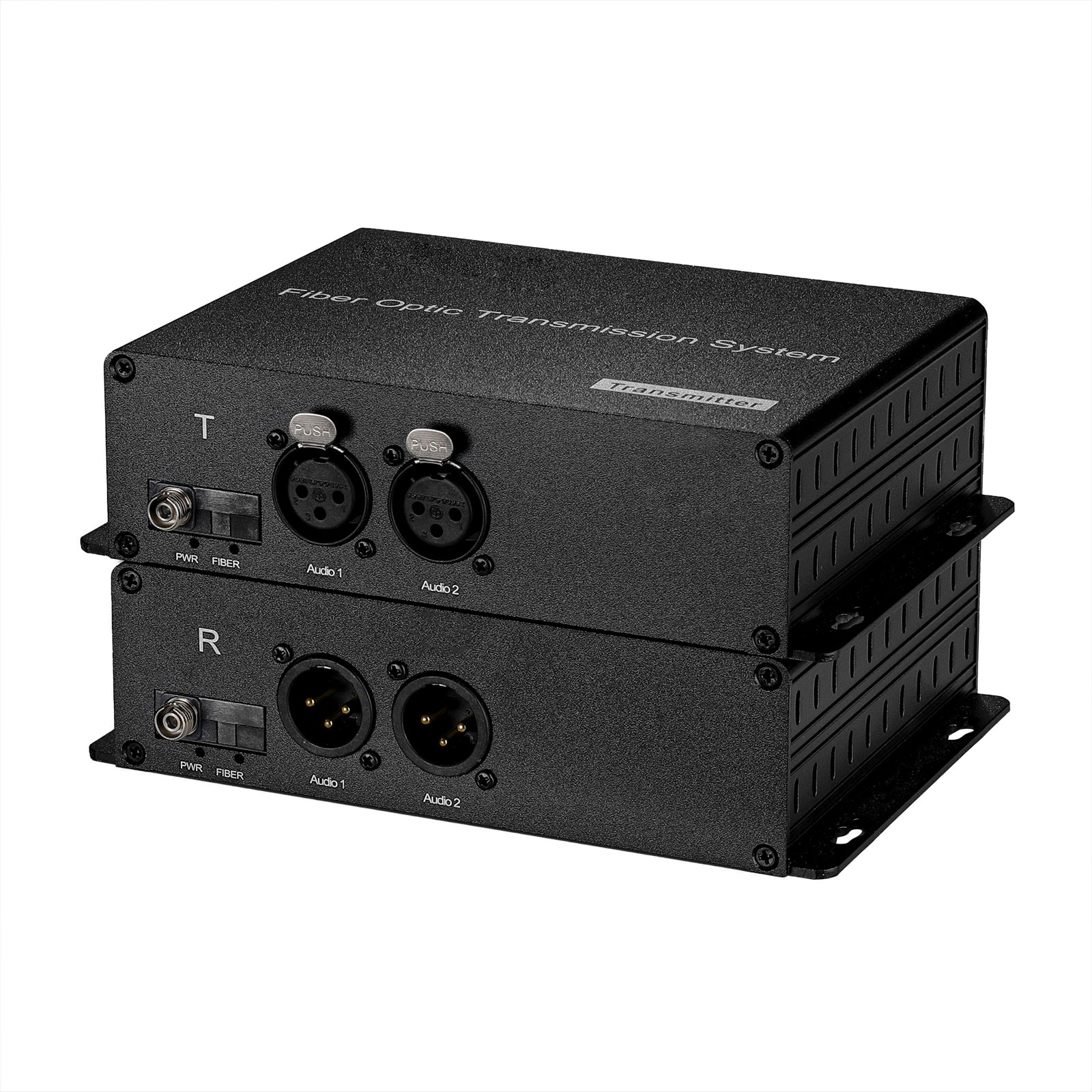

The balanced audio sends balanced line level XLR broadcast quality audio signal up 12.5 miles (20km) on single mode fiber.The system consists of a transmitter and receiver that support 16-bit digitally encoded broadcast audio for use on single mode optical fiber.
These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations.Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.
Product Features
- Support 2 channels of balanced audio forward transmission
- Broadcast standard analog balanced audio
- Using FPGA, digital coding/decoding and clock recovery technology, high integration and high stability
- Audio interface is XLR Cannon head balance interface, high dynamic range of 100dB
- Automatic high-pass filtering, isolation of DC offset
- Intelligent noise control system; For soft rising or falling slant waves and analog noise with 100dB SNR in blast-free operation
- Audio interface is in level 3 lightning protection, up to iec61000-4-5 (8/20μs) differential mode :6KV
- Single and multi-mode compatible, multi-mode transmission distance is 1KM, single-mode transmission distance 20KM, supporting customized transmission distance of up to 100KM
- LED status indicator to monitor the running status of the device
Plug and play, no setup required - Devices are used in pair. Note that devices are distinguished between transmitter and receiver
Product Specifications
| Fiber Connector | FC(SC,ST,LC optional) | Audio Signal level | 0.5-4Vp-p |
| Fiber Type | Singlemode 9/125 | Wavelength | 1310nm&1470nm~1610nm（selection is based on device function） |
| Tx Power | >-7dB | Rx sensitivity | >-24dB |
| Power supply | 12V1A | Power | <1.5W |
| Mechanical | 167*114*45mm | Operating temperature | -20°C ~ 70°C |
