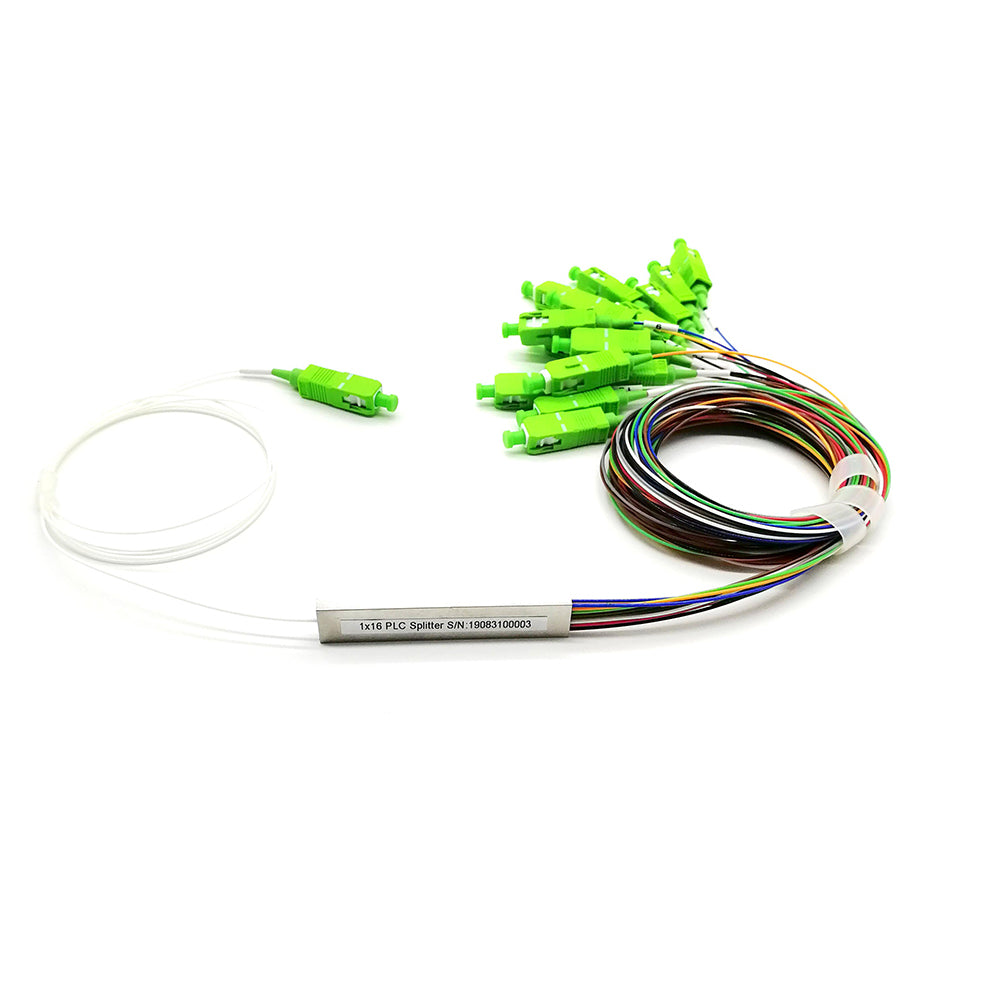

1x16 PLC Splitter FTTH optical splitter in Mini blockless steel tube
Planar lightwave circuit (PLC) optical splitter is a passive advanced components that perform the optical signal splitting in a FTTH PON network. This GPON Splitter is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations (ONU). 1x16 optical splitter comes with connector LC APC and SC APC splitter, various GPON splitter types are available for OEM/ODM by a professional optical fiber splitter manufacturers.
Mini Blockless steel tube PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It’s mainly used for various connection and distribution boxes or network cabinets.
FEATURES
- Low Insertion loss and Low PDL
- Good channel-to-channel uniformity
- Wide Operating Wavelength: From 1260nm to 1650nm
- Wide Operating Temperature: From -40℃ to 85℃
- High Reliability and Stability
- Stability Telecordia GR-1221 and GR-1209
Fiber Optic Splitter Specifications
Type | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | |||
Working Bandwidth (nm) | 1260-1650 | ||||||||
Insertion Loss (dB) Max w/o connectors | 3.8 | 7.1 | 10.2 | 13.5 | 16.8 | 20.2 | |||
Insertion Loss (dB) Max with connectors | 4.1 | 7.4 | 10.5 | 13.8 | 17.1 | 20.5 | |||
Wavelength Dependent Loss (dB) Max. | 0.2 | 0.3 | 0.4 | 0.6 | 0.8 | 1 | |||
Return Loss (dB) Min.(APC) | 55 | ||||||||
Temperature Dependent Loss(dB) Max | 0.5 | ||||||||
Stability in Hot Environment (dB/°C) Max | 1 | ||||||||
Uniformity (dB) Max | 0.6 | 0.6 | 0.8 | 1.1 | 1.5 | 2 | |||
Polarization Dependent Loss (dB) Max | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | |||
Orientation (dB) Min | 50 | ||||||||
Power (mW) Max | 300 | ||||||||
Steel Tube Size(mm) | 60*7*4 | 60*7*4 | 60*7*4 | 60*12*4 | 80*20*6 | 100*40*6 | |||
Optical Fiber | SMF-28, G657A1, G657A2 or customized | ||||||||
Input / Output length | 1meter standard or customized length | ||||||||
Cable Color | White or customized | ||||||||
Cable Diameter | 250um or 900um | ||||||||
Connector | SC APC, SC UPC or without connector | ||||||||
Operating Temperature (℃) | -40 to 85 | ||||||||
Storage Temperature (℃) | -40 to 85 | ||||||||
Standard | Telcordia GR-1209, Telcordia GR-1221, IEC 61300, IEC 6175321 |
PLC Splitter Dimensions as below: (Unit: mm)
![Fiber Optic Splitter Specifications](https://cdn.shopify.com/s/files/1/0613/4041/8306/files/lightoptics_fiber_splitter_steel_tube.jpg?v=1648891759)
How to use PLC Splitter
![How to use PLC Splitter](https://cdn.shopify.com/s/files/1/0613/4041/8306/files/lightoptics_how_to_use_fiber_splitter_steel_tube.jpg?v=1648891802)
