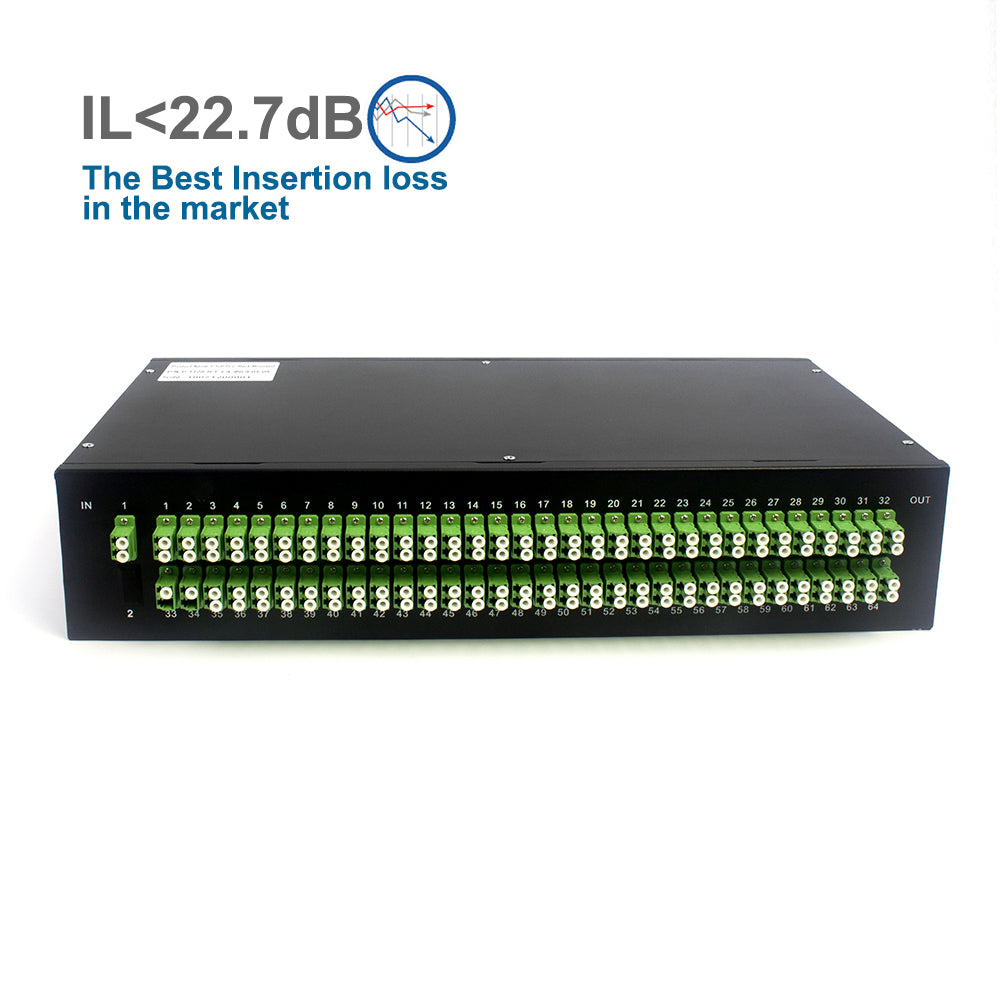

1x128 PLC Splitter LC/APC 2U Rackmount Enclosure
2U Rackmount PLC Splitter, singlemode, 1x128, symmetrical split ratio, LC/APC connectors, Best Insertion loss in the market (IL<22.7dB)
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. Passive fiber splitters are commonly found in PON(Passive Optical Networks), Datacom, LAN(Local Area Networks), CATV(Cable TV), LCP(Local Convergence Points), FTTx, and more applications, suitable for communication, medical, bank, building, large Office buildings, offices and other places with high-quality network requirements. 1:128 fiber splitter in 2U Rack housings are suitable for installation in fiber optic switchgears and cabinets racks etc.
Features
- Split Input Signal Evenly into 128 Output Ports
- ≤22.7dB Low Insertion Loss and ≤0.5dB Low Polarization Dependent Loss
- Fully Passive Optical Branching Device
- Compact Housing Fits Racks, Wall-mounted Boxes, Fiber Distribution Box, etc.
- 1260~1650nm Broad Operating Wavelengths
- G.657A1 Bend Insensitive Fibers for Low Bending Loss
- Commonly Found in PON, Datacom, LAN, CATV, LCP, FTTx and More Application
| Split Ratio | 1:128 |
Fiber Type | Singlemode G.657A1 |
| Connectors | LC/APC | Operating Wavelength(nm) | 1260-1650nm |
| Insertion Loss | ≤ 22.7dB（without connector） | Polarization Dependent Loss (PDL) | ≤ 0.5dB |
| Return Loss | ≥ 50dB | Loss Uniformity | ≤ 3.0dB |
| Wavelength Dependent Loss | ≤ 0.3dB | Directivity | ≥ 50dB |
| Temperature Dependent Loss | ≤ 0.5dB | Operating Bandwidth/Wavelength | 1260~1650nm |
| Dimensions (HxWxD) | 3.5"x19.00"x9.84" (88x482.6x250mm) | Temperature |
Operating -40 to 85°C (-40 to 185°F) Storage -40 to 85°C (-40 to 185°F) |
