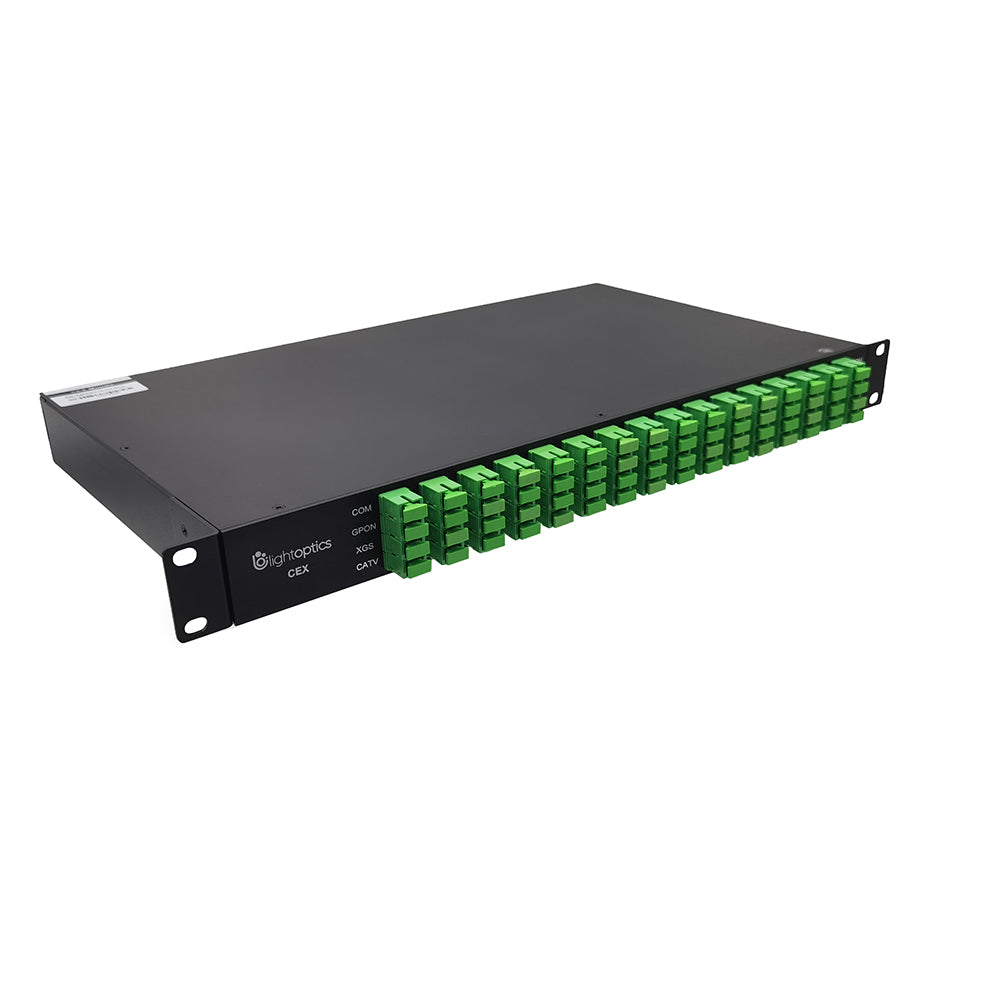

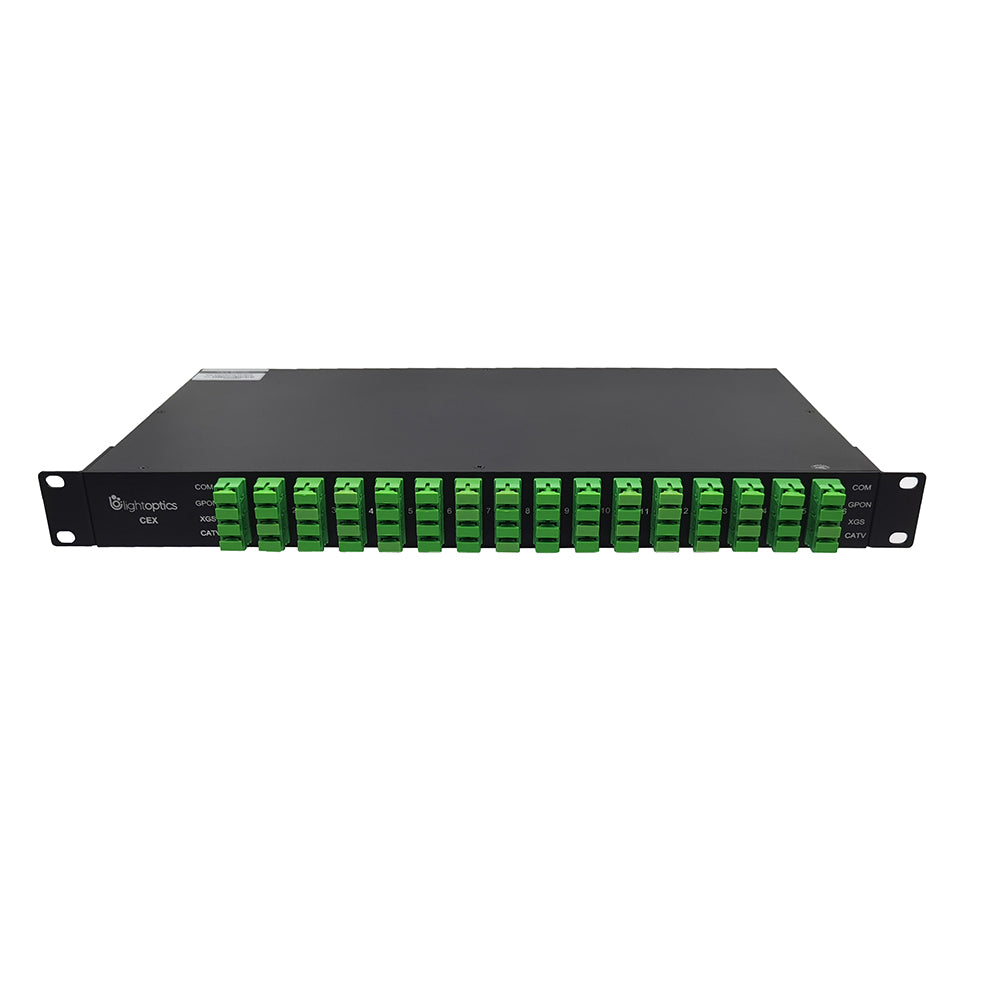

16x GPON+XGS-PON+CATV (1550nm) CEx WDM Multiplexer 1U 19'' Rack

$999.80
Connector :
$999.80
Tags:

Co-existence, Single Fiber, for GPON/XGS-PON and CATV, 16x CEx module, 1U 19'' Rack

Coexistence Element (CEx) is a single WDM device used to combine current G-PON FTTH services with emerging XGS-PON and Next Generation NG-PON2 technologies to coexist during the transmission from OLT to ONU. Additional provisioning wavelengths with the Coexistence Element include RF Video CATV, Point to Point (PtP), and OTDR monitoring. LightOptics manufactured CEx WDM module is compliant with Telcordia GR-1209 GR-1221 to ensure the durability, accuracy and unlimited functionality. Each Coexistence Element (CEx) GPON/XGS-PON module we offer is guaranteed factory new and tested before shipment, regarding quality and functionality.

GPON Wavelengths: 1290nm – 1330nm, 1480nm – 1500nm
XGS-PON Wavelengths: 1260nm – 1280nm, 1575nm – 1580nm
RF Video/CATV Wavelengths:1550nm – 1560nm

Optical Specification

Parameters Values
Unit Min Typical Max
Operating Wavelength Range nm 1260 1625
GPON nm 1290~1330/1480~1500
Operating Center Wavelength (λc) XGS-PON nm 1260~1280/1575~1581
CATV nm 1550~1560
GPON dB 1
Insertion Loss* XGS-PON dB 1.2
CATV dB 1.2
Total Optical Loss** dB 2
Isolation @ GPON dB 35
@ XGS-PON dB 35
@ CATV dB 12
Return Loss (All Ports) dB 45
Directivity (All Ports) dB 40
PDL (All Ports) dB 0.2
PMD (All Ports) ps 0.1
Optical Power Handling (Any individual port) mW 300
Operating Temperature OC -40 85
Storage Temperature OC -40 85
Operating Relative Humidity/Moisture %RH                                          95
Storage Relative Humidity/Moisture %RH                                          95
