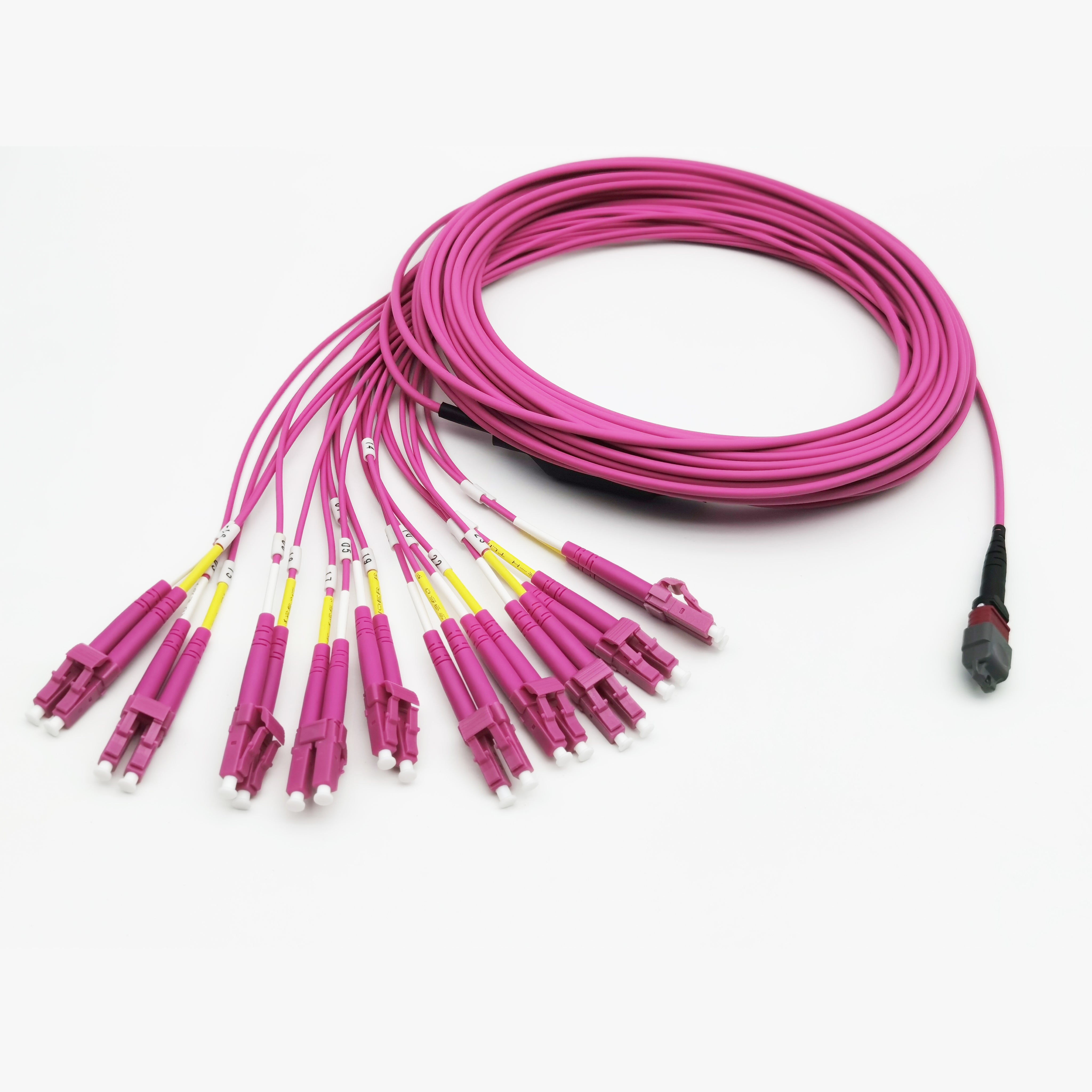

16 Fibers MTP/MPO-APC Female to LC Duplex Multimode OM4 Fiber 400G/50G Breakout Optic Cable
16 Fibers MTP/MPO-16 APC to 8x LC duplex OM4 (50/125) 400G Breakout Fiber Cable, Non-pinned Female, Polarity Type B for 400G to 50G / SR8 to SR (x8)
MTP/MPO Breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
What is MPO / MTP 16 Connector?
The MPO/ MTP 16 connector family encompasses the 16 fiber MT ferrule, connector hardware,and bulkhead adapters. Utilizing the same external footprint as the existing traditional 12 fiber MT ferrule, the 16 fiber MT is available in one or two rows of 16 fibers and leverages all the proven features and technology of our traditional PPS MT ferrules. The connector hardware offers a unique keying feature as opposed to the centered keying feature on the traditional MPO hardware. This new keying design, standardized by TIA 604-18 (FOCIS 18) and IEC (61754-7-3), ensures proper mating of the MPO-16 / MTP-16 connector without inadvertently mating the 16 fiber connector hardware with standard MPO compliant hardware. MPO/ MTP 16 adapters are available in full or reduced flange mountingand opposed or aligned key orientation.
This OM4 16 Fibers MTP/MPO to 8x LC duplex breakout cable is optimized for 400G QSFP-DD SR8 to 50G SR optics direct connection and high-density data center applications.
Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
| Connector A | MTP Female (pinless) | Connector B | 8x LC/UPC Duplex |
| Fiber Mode | 16 fibers OM4 50/125 μm | Wavelength | 850/1300 nm |
| Polish Type (MTP) | APC | Polish Type (LC) | UPC |
| Minimum Bend Radius | 7.5 mm | RoHS Compliancy Status | Compliant |
| Insertion Loss (LC) | ≤ 0.2 dB | Return Loss (LC) | ≥ 30 dB |
| Insertion Loss (MTP) | 0.35 dB Max. (0.15 dB Typ.) | Return Loss (MTP) | ≥ 20 dB |
| Attenuation at 850 nm | ≤ 2.3 dB/km | Attenuation at 1300 nm | ≤ 0.6 dB/km |
| Jacket OD | 3.0 mm | Cable Jacket | LSZH |
| Installation Tensile Load | 66 N | Long/Short Term Tensile Load | 80 N/240N |
| Storage Temperature | -40°C to 85°C | Operating Temperature | -10°C to 70°C |
