1550nm Coaxial 4mW DFB Laser Diode Fiber Pigtail SC/APC Connector
1550nm Coaxial 4mW DFB Laser Diode Fiber Pigtail SC/APC Connector

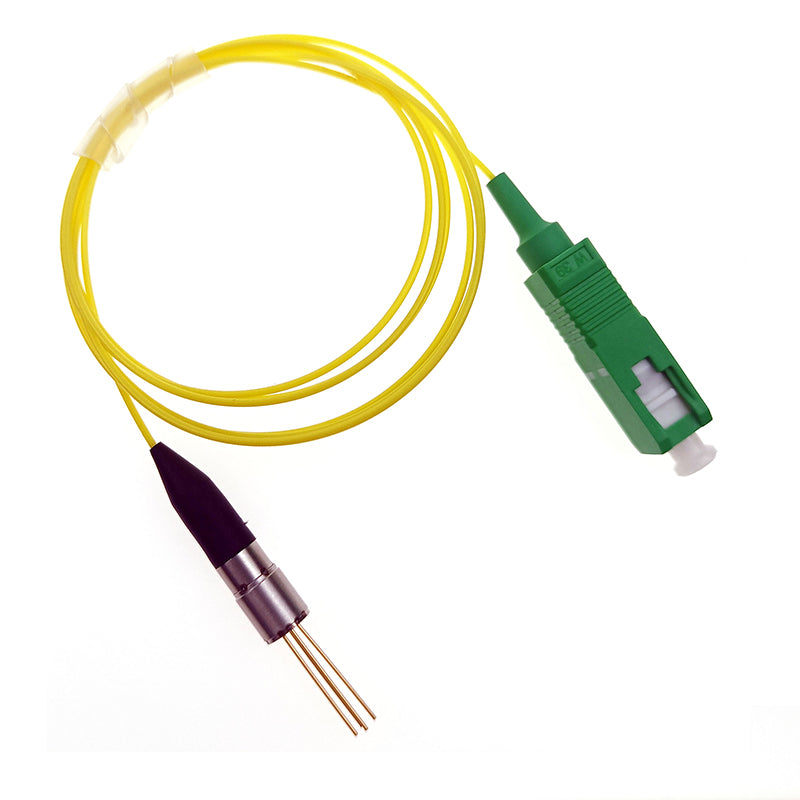

The 1550nm DFB Pigtail Laser Diode Module consists of Distributed Feedback (DFB) lasers, having a fiber pigtail precisely attached for optimum coupling efficiency. This 1550nm center wavelength version has a typical 1mW~4mW of output power and includes a back facet photodiode, and an integrated optical isolator. The 9/125 single mode fiber pigtail is terminated with an FC/APC or SC/APC style fiber optic connector. Applications include high-speed data and telecommunications systems and instrumentation, and optical instruments requiring a laser diode light source.
Features
- DFB wavelength stabilized single mode laser
- CW or pulsed operation
- Operating temperature range -20℃ to +75℃
- Wavelength/temperature coefficient 0.1nm/℃
- Built-in monitor photodiode
Electro-Optical Characteristics(T=25℃) of 1550nm DFB Pigtail Laser Diode Module
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit |
| Center wavelength | λC | PO= PF | 1540 | 1550 | 1560 | nm |
| Optical output power | PF | IF=ITH+20mA | 2 | - | - | mW |
| Threshold current | ITH | 4 | 10 | mA | ||
| Operating voltage | VF | - | - | 1.2 | 1.5 | pF |
| Rise time/Fall time | TR/TF | IF=ITH,PO=PF(20-80)% | - | - | 0.4 | ns |
| Monitor current | IM | PO= PF | 0.1 | - | 1 | mA |
| Capacitance | C | - | - | 10 | 15 | PF |
| Spectral width(-20dB) | Δλ | IF=ITH+20mA | 1.6 | 2.5 | nm | |
| Tracking error | TE | - | -1.0 | - | 1.0 | dB |
| Optical isolation | ISO | - | 30 | - | - | dB |
| 2Sec order inter-modulation distortion | IMD2 | - | - | - | -50 | dBc |
| 3rd order inter-modulation distortion | IMD3 | - | - | - | -60 | dBc |
| Relative intensity noise | RIN | - | - | - | -145 | dB/Hz |
| Side mode suppression ration | SMSR | PO = 2mW | 40 | - | - | dB |
