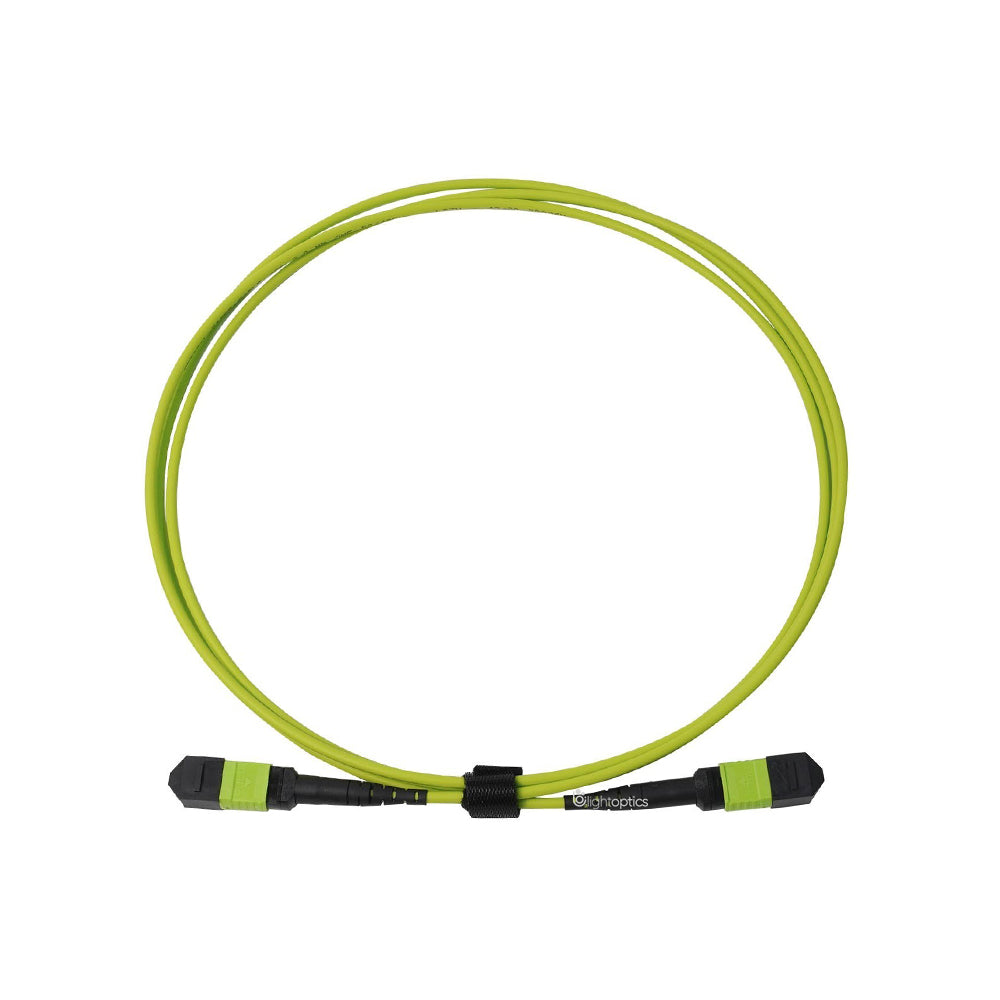

12 Fibers MPO/MTP UPC Female Multimode OM5 Fiber Trunk Cable

$56.05
Length :
Polarity :
$56.05
Tags:

MTP/MPO UPC Female to MTP/MPO UPC Female OM5 Multimode Trunk Cable

MTP/MPO fiber trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

OM5 fibers are 100% standards compliant meeting all OM3 and OM4 specifications, with an additional requirement for Differential Mode Delay (DMD) that compensates for modal and chromatic dispersion. And they include additional bandwidth characterization at 953 nm to support extended distances when using SWDM. OM5 fibers apply to data centers which require quick infrastructure deployment with extended reach that want to maintain bandwidth throughout the infrastructure.

Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

Product Specifications

Connector A MTP Female (pinless) Connector B MTP Female (pinless)
Fiber Mode Multimode 50/125 μm Wavelength 850/1300 nm
40G Ethernet Distance 440 m at 850 nm 100G Ethernet Distance 150 m at 850 nm
Multi Mode Class OM5 RoHS Compliancy Status Compliant
Polish Type APC to APC Minimum Bend Radius 7.5 mm
Insertion Loss 0.35 dB Max. (0.15 dB Typ.) Return Loss ≥ 20 dB
Attenuation at 850 nm ≤ 2.3 dB/km Attenuation at 1300 nm ≤ 0.6 dB/km
Jacket OD 3.0 mm Cable Jacket LSZH
Installation Tensile Load 66 N Long/Short Term Tensile Load 80 N/240 N
Storage Temperature -40°C to 85°C Operating Temperature -10°C to 70°C
