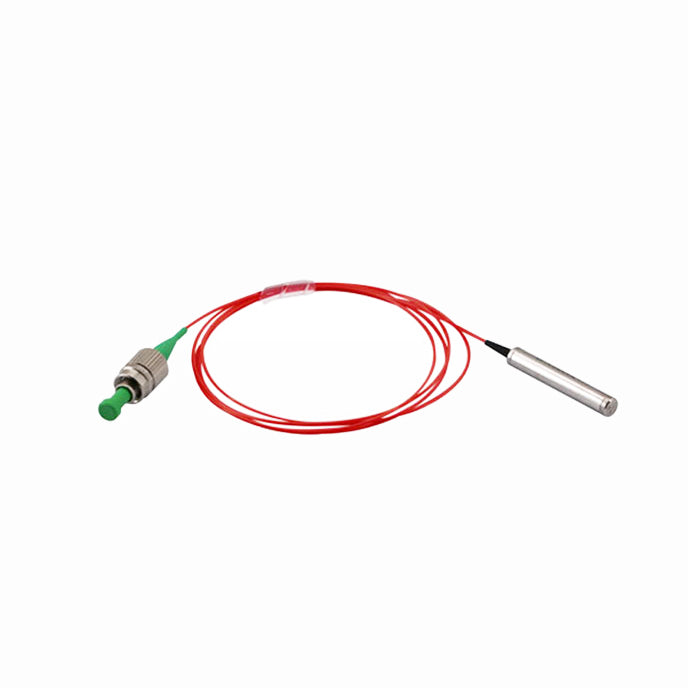

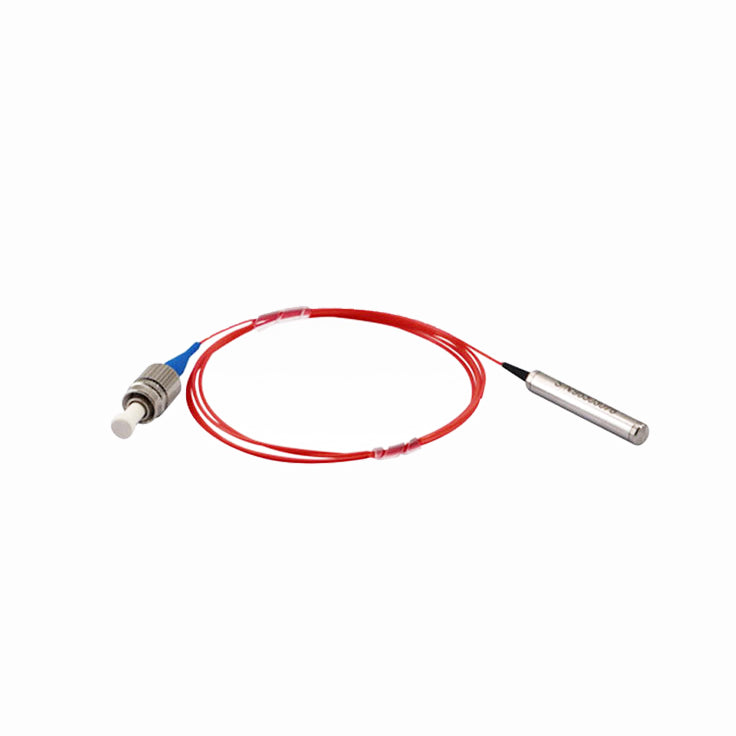

1064nm Polarization Maintaining Faraday Rotator Mirror with PM Panda fiber pigtails

$199.80
Fiber Type :
Cable Length :
Optical Connectors :
$199.80

1064nm Polarization Maintaining Faraday Rotator Mirror with PM Panda fiber pigtails

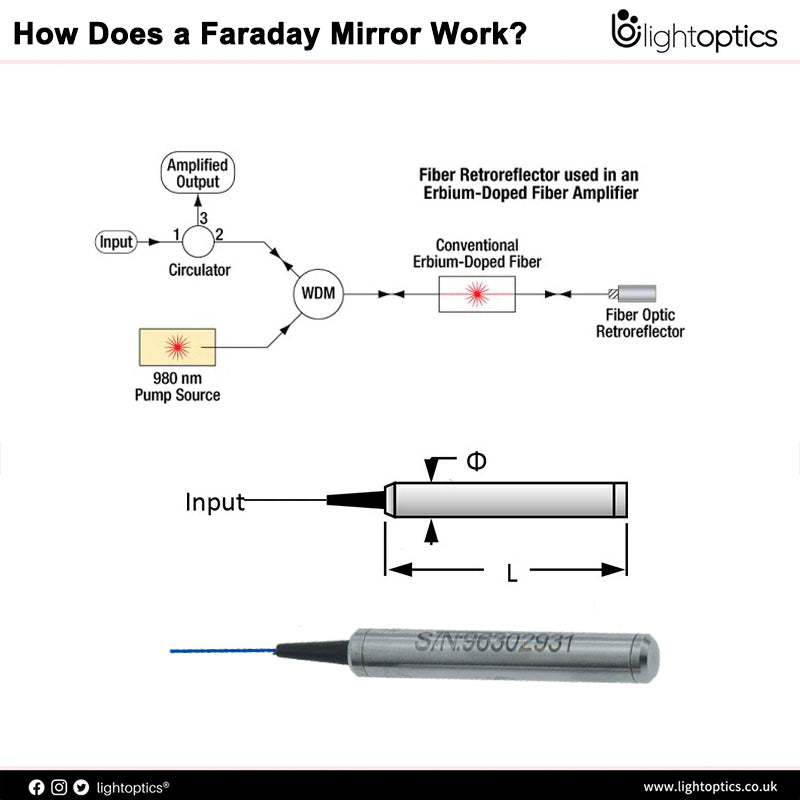

Faraday Rotator Mirrors (FRMs) are used in a number of fiber optic applications, including interferometric sensor systems. In general, FRM performance parameters are specified over a central wavelength and narrow temperature range. This means that the rotation angle will change over wavelength and temperature.

We now offers a compact form factor, broadband Faraday Rotator Mirrors that rotates the light 45 degrees (single pass) over a wavelength range of 1550 nm ± 15 nm, and a temperature range of -5°C to +70°C. With a constant rotation angle within this bandwidth and operating temperature range, the broadband FRM can reduce noise dramatically for interferometric sensor systems.

 Standard Specifications (Faraday Rotator Mirror)

Parameter Condition Units Value
Center Wavelength nm 633-850 980-1064 1310-1550 & 1064
Insertion Loss Typical dB 0.8 0.8 0.6
Maximum dB 1 1 0.8
Low Loss (- 60 Loss) dB N/A N/A 0.6
Return Loss dB 40 40 40, 60
Polarization Extinction Ratio dB 20 20 20, 25, 30
Rotation Angle At center wavelength degrees 45
Rotation Tolerance  At center wavelength,25°C degrees ±3 ±3 ±3
