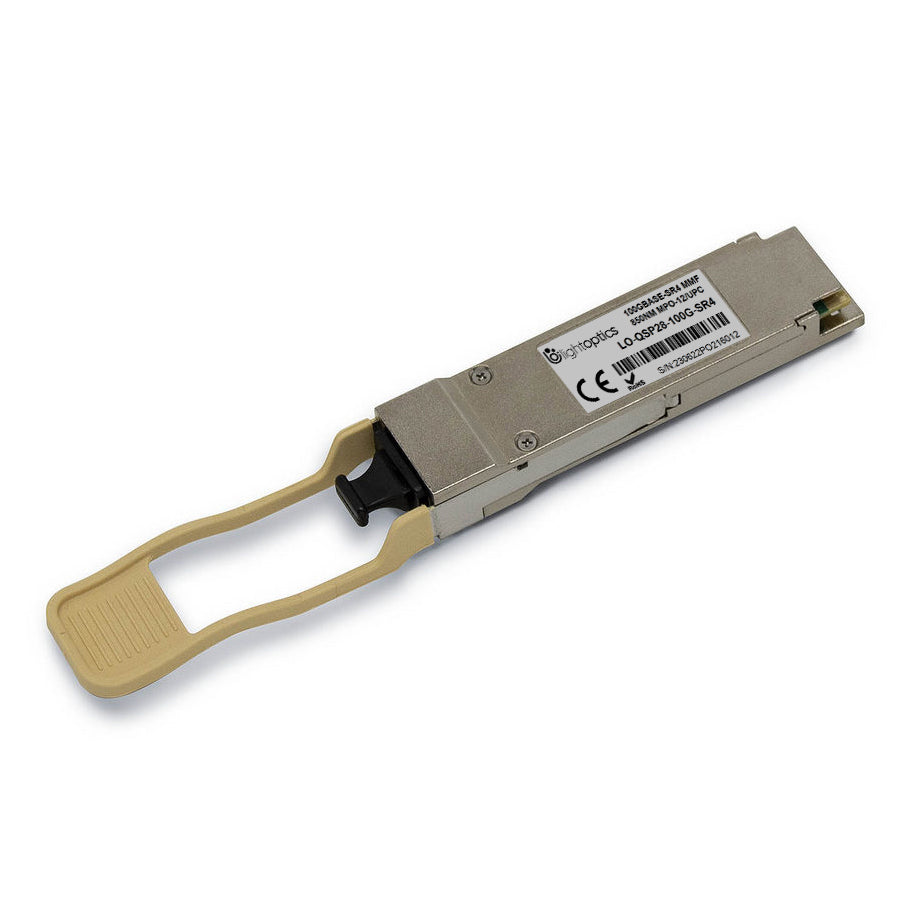

QSFP28 100GBASE-SR4 850nm 100m MTP/MPO MMF DDM Transceiver Module

$39.90
Compatibility :
$39.90
Tags:

100GBASE-SR4 QSFP28 850nm MPO/MTP-12 MMF 100m DDM

LightOptics’s industry-standard 100G quad small form-factor pluggable (QSFP28) optics are hot-swappable input/output modules for use throughout various data communication applications. The modules offer full MSA compliance and support 100G data transmissions with low power consumption and industry-leading optical specifications.

100G QSFP28 optics are an excellent choice for data center infrastructures, longer distance transport applications. Designed with cost-effectiveness and network provider needs in mind, LightOptics’s diverse line of 100G QSFP28 modules enables up to 112G speeds at distances up to 80km using our recently released 100G ZR4.

Our variety of modules feature varying specifications to meet specific network applications. These offerings include exclusive short-haul SR-BD as well as long-haul ZR4 and everything in between. Additional products include ESR4, LR4, PLR4L, CWDM4, ER4 as well as single lambda FR and DR.

Product Specifications

Part Number LO-QSP28-100G-SR4 Vendor Name LightOptics®
Form Factor QSFP28 Max Data Rate 103.1GbpsTransceiver Modules
Wavelength 850nm Max Distance 100m on OM4
Connector MTP/MPO-12 Transmitter Type 850nm VCSEL
Cable Type MMF Receiver Type PIN
TX Power -8.4~+2.4dBm Receiver Sensitivity < -10.3dBm
Protocols 100G Ethernet, MSA Compliant Operation Temperature 0 to 70°C (32 to 158°F)
