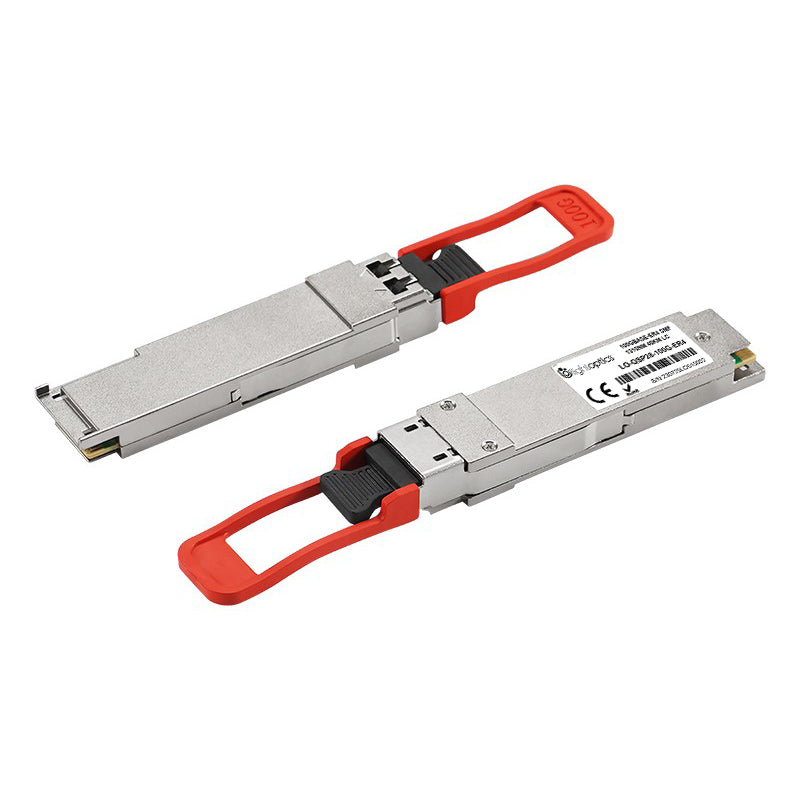

QSFP28 100GBASE-ER4 1310nm SMF 40km LC Duplex DDM Transceiver Module
100% OEM Compatible 100GBASE-ER4 QSFP28 Optical Transceiver Module for Ethernet and Data Center (SMF, 1295-1309nm, 40km, LC, DOM)
The 100GBASE-ER4 QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 30km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connector. It provides high-density and low-power 100GBASE Ethernet solution for data centers, high-performance computing networks,enterprise core and distribution layer applications. It is fully compliant with the QSFP28 MSA and IEEE 802.3ba 100GBASE-ER4 Lite standard.
| P/N | LO-QSP28-100G-ER4 | Vendor Name | LightOptics |
| Form Factor | QSFP28 | Max Data Rate | 103.125 Gb/s |
| Wavelength | 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm | Max Cable Distance | 30km (18.6 miles); 40km (24.8 miles) with FEC |
| Connector | LC duplex | Media | SMF |
| Transimitter Type | 4x EML | Receiver Type | APD |
| CDR (Clock and Data Recovery) | TX & RX Built-in CDR | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power | Min: -2.9dBm Max: 6.5dBm | Receiver Sensitivity | <-18.5dBm |
| Power Consumption | ≤5W | Receiver Overload | -4.9dBm |
| Powerbudget | 16dB | Commercial Temperature Range | 0 to 70°C |
| Host FEC | Supported | Warranty | 5 Years |
| Protocols | QSFP+ MSA, IEEE 802.3ba Compliant | Application | Data Center, 100GBASE Ethernet |
